JK E10150HDTIC 150Inch In-CeilingTab

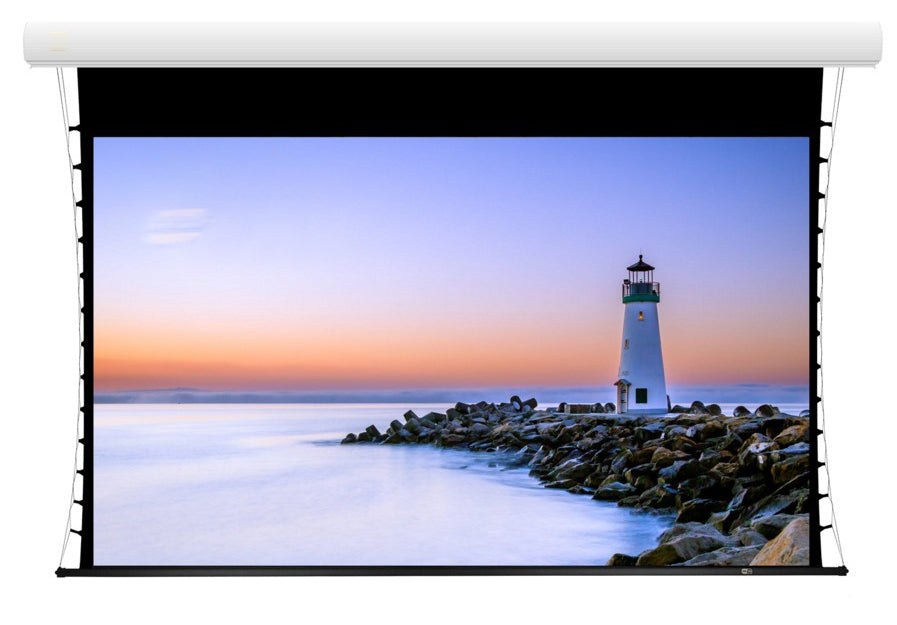

JK E10150HDTIC — 150-inch in-ceiling tab tensioned motorised projection screen in 16:10 aspect ratio, with high quality fibre glass fabric for a consistently flat, ripple-free projection surface.

The JK HDTIC range is designed for flush in-ceiling installation — the white aluminium housing sits level with the ceiling finish when the screen is retracted. Tab tension, maintained by side rails and a white aluminium weight bar, keeps the fabric completely taut and flat throughout the drop travel, eliminating the edge curl and ripple common in non-tensioned screens. The fibre glass material provides a uniform, accurate surface for HD and 4K projection. An advanced tubular motor delivers quiet, fast automated operation. Control is via external RF remote receiver, 12V trigger, and RS232 for AV automation integration. Available in matt white fabric; a grey fabric option for high-contrast environments is available in 16:9 aspect ratio up to 133 inches. Mounting brackets, fasteners, and remote cradle included. 12-month return-to-base warranty.

Key features

• In-ceiling installation — white aluminium housing flush with ceiling when retracted
• Tab tensioned — side rails and weight bar keep fabric flat and ripple-free
• 150-inch diagonal, 16:10 aspect ratio
• High quality fibre glass fabric — uniform HD and 4K projection surface
• Advanced tubular motor — quiet, fast automated operation
• External RF remote receiver; 12V trigger; RS232 control
• Grey fabric option available (16:9, up to 133 inches)
• Mounting brackets, fasteners, and remote cradle included
• 12-month return-to-base warranty

Specifications

• Model: E10150HDTIC
• Screen size: 150 inches diagonal (viewing area)
• Aspect ratio: 16:10
• Surface: Matt white fibre glass (grey option available)
• Housing: White aluminium in-ceiling case
• Tensioning: Tab tensioned with aluminium weight bar
• Motor: Advanced tubular motor
• Remote receiver: External RF
• Control: RF remote; 12V trigger; RS232
• Warranty: 12 months RTB

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
