LD SYstems Dave 15G3 Compact 15"Active

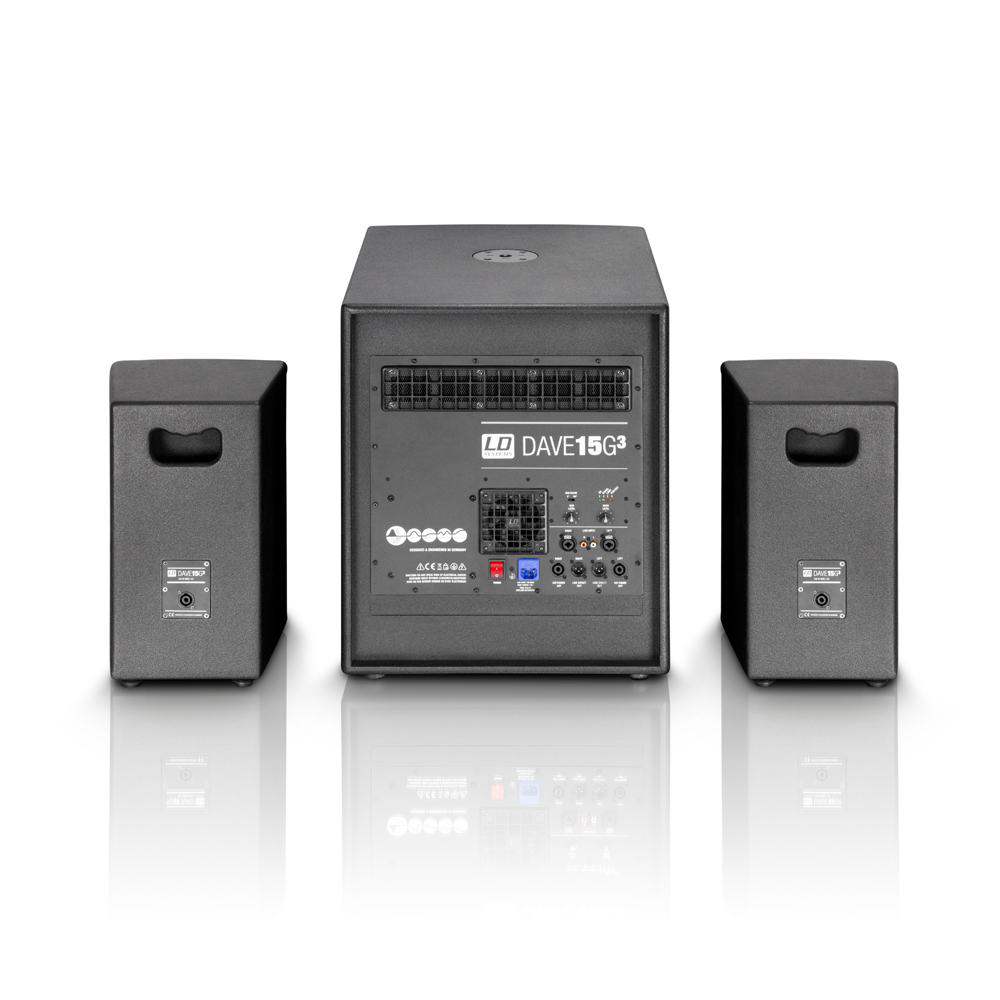

LD Systems DAVE 15 G3 Compact 15" Active PA System

The LD Systems DAVE 15 G3 is a powerful and compact active PA system designed for professional audio applications. Featuring a 15" bass reflex subwoofer and 8" satellite drivers, it delivers clear midrange and transparent treble with a peak power output of 2800W, ideal for both portable use and permanent installations.

Key Features

• Compact 15" active PA system with bass reflex subwoofer
• 2800W peak power via integrated 2.1 Class A/B amplifier
• LD LECC DSP digital processor with optimised crossovers, equalisers, limiters and dynamic compressor
• Satellites with 8" drivers and HF horns for natural midrange and clear treble
• Sturdy multiplex plywood cabinets with textured paint finish
• Ergonomic recessed handles and innovative "Evolutive" metal ring handles for easy transport
• Vertically adjustable satellite speaker supports (±13.5° in seven increments)
• Multiple input options: RCA, XLR/jack combo, Speakon-compatible connectors
• Protection circuits including limiter, short circuit and overload protection
• Suitable for portable use and permanent installation

Specifications

• Product type: PA system
• Type: Active
• Colour: Black
• Max. SPL (continuous): 121 dB
• Max. SPL (peak): 132 dB
• Frequency response: 35 - 19,000 Hz
• Dispersion (H x V): 90° x 40°
• Weight: 60.9 kg

Subwoofer

• Driver size: 15" (381 mm)
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Voice coil diameter: 3" (76.2 mm)
• Cabinet construction: Vented
• Cabinet material: 18 mm plywood with textured paint
• Dimensions (W x H x D): 480 mm x 570 mm x 635 mm
• Features: Threaded flange M20, LD Systems "Evolutive" handles

Mid/High System

• Midrange driver size: 8" (203.2 mm)
• Midrange magnet: Ferrite
• Midrange brand: Custom-made
• Midrange voice coil: 1.5" (38.1 mm)
• Horn type: CD horn
• Tweeter size: 1" (25.4 mm)
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Tweeter voice coil: 1" (25.4 mm)
• Impedance: 4 Ohms
• Speaker inputs: 1 (Speakon compatible)
• Cabinet construction: Closed
• Cabinet material: 15 mm plywood with textured paint
• Dimensions (W x H x D): 275 mm x 430 mm x 260 mm
• Features: Ergonomically shaped insert handles, SM707 stand mount 36 mm

Amplifier Module (Integrated in Subwoofer)

• Amplifier type: Class A/B
• Output power (RMS): 700 W
• Output power (Peak): 2800 W
• Protection circuits: Limiter, short circuit, overload
• Cooling: Volume-controlled fan
• Controls: Power, volume, subwoofer phase reverse, sub level
• Display indicators: Signal, protect (protection circuit engaged), limit, on/off
• Operating voltage: Transformer, 220 V AC - 240 V AC
• Power consumption: 1000 VA
• Line inputs: 2 (6.3 mm jack, RCA, XLR)
• Line output connectors: XLR
• Loudspeaker outputs: 2 (Speakon compatible)

Additional Information

Accessories such as speaker protection covers, castor boards with lashing straps, matching speaker stands, spacer tubes, and mounting forks are available separately to enhance portability and installation.

The DAVE 15 G3 is a versatile choice for professional sound reinforcement, suitable for both portable use and permanent installation.
