Lightware HDMI-TPS-RX87
R 8 610
Limited availabilityQuantity
1
R 8 610
12 monthly paymentsfrom R 718 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September

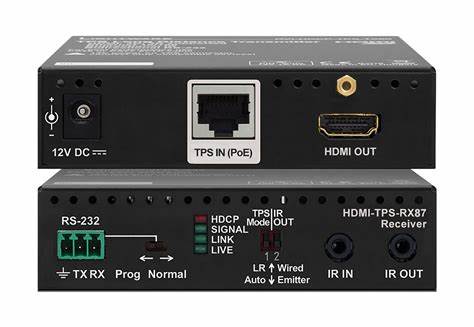

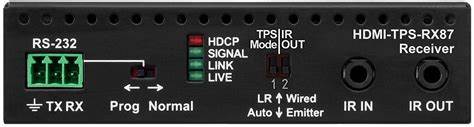

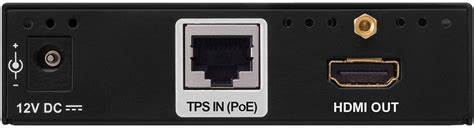

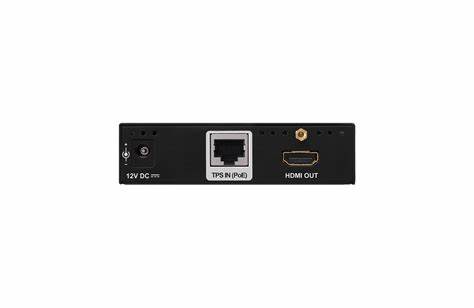

Estimated from today, excluding weekends.Lightware HDMI-TPS-RX87 Receiver
The Lightware HDMI-TPS-RX87 is a high-performance HDMI receiver designed for professional AV installations. It reliably extends HDMI, audio, and control signals up to 170 metres over a single Cat5e/6/7 cable, delivering pristine Full HD video and audio quality for seamless long-distance transmission.
Key Features
- Supports uncompressed Full HD video, 3D formats, and Deep Colour
- Transmits HDMI, audio, and control signals via a single Cat5e/6/7 cable up to 170 metres
- Compatible with TPS (Twisted Pair Standard) technology
- Advanced EDID management for seamless integration
- HDMI and DVI compatibility
- Remote power capabilities
- RS-232 and IR pass-through for integrated control solutions
- Robust error correction ensuring reliable transmission
- Designed to work seamlessly with Lightware transmitters for easy expansion
Applications
Ideal for corporate venues, educational institutions, digital signage, meeting rooms, and control room environments where centralised control and minimal setup complexity are essential.
( Specifications )
| 3D Support | Yes |
| Analog Audio Out Type | Balanced, unbalanced (Phoenix) |
| Audio Formats Supported | LPCM 2-channel, multichannel formats (compressed), Dolby Digital, DTS |
| Audio Outputs | 1 x 8 pole Phoenix (analogue stereo), 1 x TOSLINK (digital optical) |
| Cable Type Supported | Cat5e, Cat6, Cat7 S/FTP or U/FTP |
| CEC Support | Yes |
| Color Spaces Supported | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Compatible Transmitters | Lightware HDBaseT TPS transmitters |
| Compliance | CE, FCC |
| Control Ports | 1 x RS-232 (Phoenix), 1 x IR in (Phoenix) |
| Cooling Method | Passive |
| Deep color support | Yes, up to 36-bit |
| Device Type | HDBaseT Receiver |
| Dimensions (W x D x H) | 206 x 106 x 26 mm |
