Lightware HDMI-TPS-TX96
R 9 390
Limited availabilityQuantity
1
R 9 390
12 monthly paymentsfrom R 783 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September
Estimated from today, excluding weekends.Lightware HDMI-TPS-TX96 HDBaseT Extender Transmitter

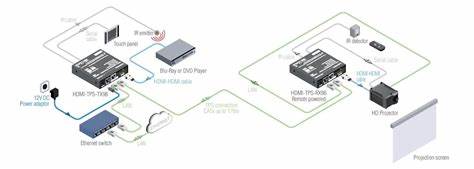

The Lightware HDMI-TPS-TX96 is a high-performance HDBaseT extender transmitter designed for professional AV applications, delivering HDMI, audio, Ethernet, USB KVM, and bidirectional RS-232 and IR signals over a single CAT5e/6/7 cable up to 170 metres. It supports resolutions up to 4K UHD (3840x2160@30Hz) and complies with HDCP 2.2 and 1.4 standards, ensuring compatibility with modern content protection.
Key Features
- Transmits HDMI, audio, Ethernet, USB KVM, RS-232, and IR signals over one CAT5e/6/7 cable up to 170 metres
- Supports 4K UHD resolution (3840x2160@30Hz) with HDCP 2.2 and 1.4 compliance
- Advanced EDID management with automatic and manual EQ adjustment
- Built-in Power over Ethernet (PoE) for simplified installation and powering remote receivers
- Audio de-embedding and source detection for versatile AV setups
- Comprehensive status LEDs for quick troubleshooting
- Supports deep colour, multi-channel audio formats, and DVI-D signal transmission with appropriate adapters
- Compact, robust design ideal for conference rooms, classrooms, digital signage, and corporate AV environments
Specifications
- Model: HDMI-TPS-TX96
- Signal Transmission: HDMI, audio, Ethernet, USB KVM, RS-232, IR
- Cable Type: CAT5e/6/7
- Maximum Distance: 170 metres
- Resolution Support: Up to 4K UHD (3840x2160@30Hz)
- HDCP Compliance: 2.2 and 1.4
- Power: Built-in PoE
( Specifications )
| Accessory Options | Rack-mount kit, wall-mount bracket (optional) |
| Active cooling | No (passive cooling) |
| Analog Audio Output | Line level, balanced stereo via Phoenix |
| Audio embedding | Yes, analog stereo audio available |
| Audio Extraction | Yes, from HDMI stream (stereo or multichannel, configurable) |
| CEC Pass-Through Support | Yes |
| Chassis Color | Matte black |
| Chassis Material | Metal |
| Compliance, EMC | EN 55032, EN 55024 |
| Compliance, Safety | CE, FCC, RoHS |
| Connectors, Audio Input | 1 x 5-pole Phoenix (balanced stereo) |

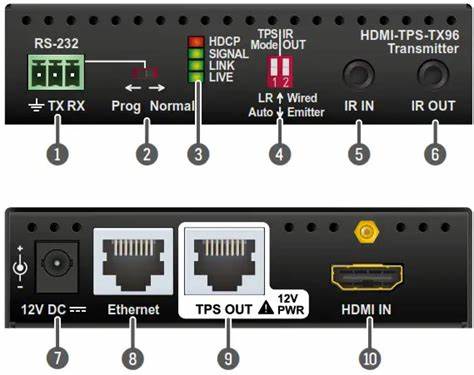

| Connectors, Control | 1 x RS-232 (3-pole Phoenix), 1 x IR in, 1 x IR out, Mini USB (control and firmware upgrade), Ethernet RJ45 (control) |

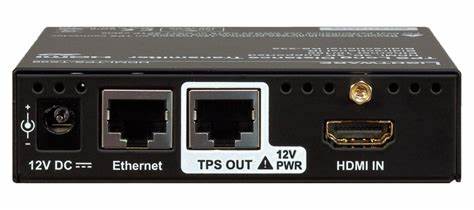

| Connectors, Video Input | 1 x HDMI type A, female |
| Connectors, Video Output | 1 x TPS RJ45, female |
