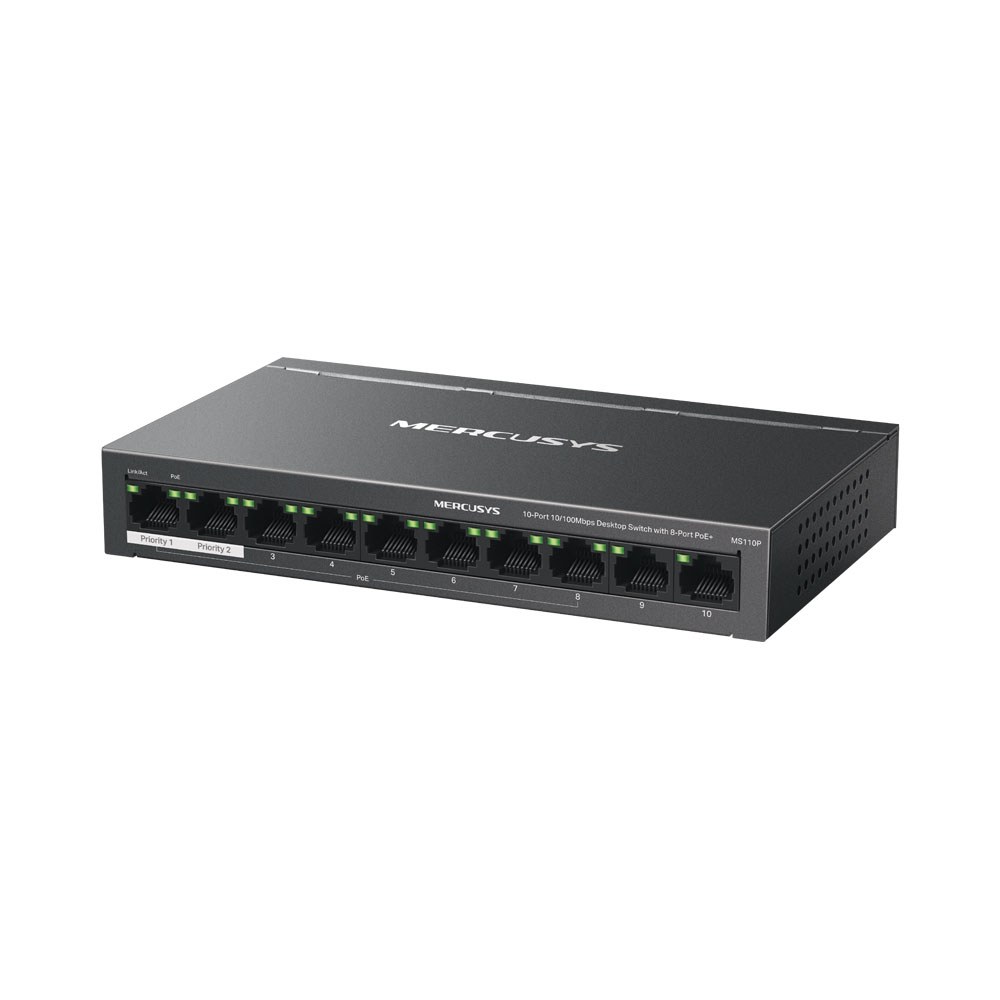

Mercusys MS110P10-Port 10/100MbpsDesktop

Mercusys MS110P — 10-port 10/100Mbps desktop PoE+ switch with 8× PoE+ ports (30W per port, 65W total PoE budget), 2× uplink ports in isolation mode, and Extend Mode for PoE reach up to 250m — suited to medium IP surveillance and multi-access-point deployments.

With 8 PoE+ ports, the MS110P powers up to 8 IP cameras, access points, or VoIP phones over standard Ethernet cabling. Isolation Mode separates traffic between uplink ports — one for internet and one for an NVR — keeping camera traffic segmented from the general network. Extend Mode sacrifices link speed to 10Mbps in exchange for PoE reach up to 250m, eliminating the need for mid-span injectors on long cable runs.

Key features

• 10-port 10/100Mbps switch — 8× PoE+, 2× standard uplink
• 30W per PoE port, 65W total PoE budget
• Isolation Mode — 2× uplink ports (internet + NVR separation)
• Extend Mode — PoE reach up to 250m (at 10Mbps)
• Desktop form factor — no rack mount required

Specifications

• Model: MS110P
• Ports: 10× 10/100Mbps RJ45
• PoE+ ports: 8
• PoE per port: Up to 30W
• Total PoE budget: 65W
• Extend Mode range: Up to 250m (10Mbps)
