Montarbo TP-11

Montarbo TP-11 — compact tube preamplifier.

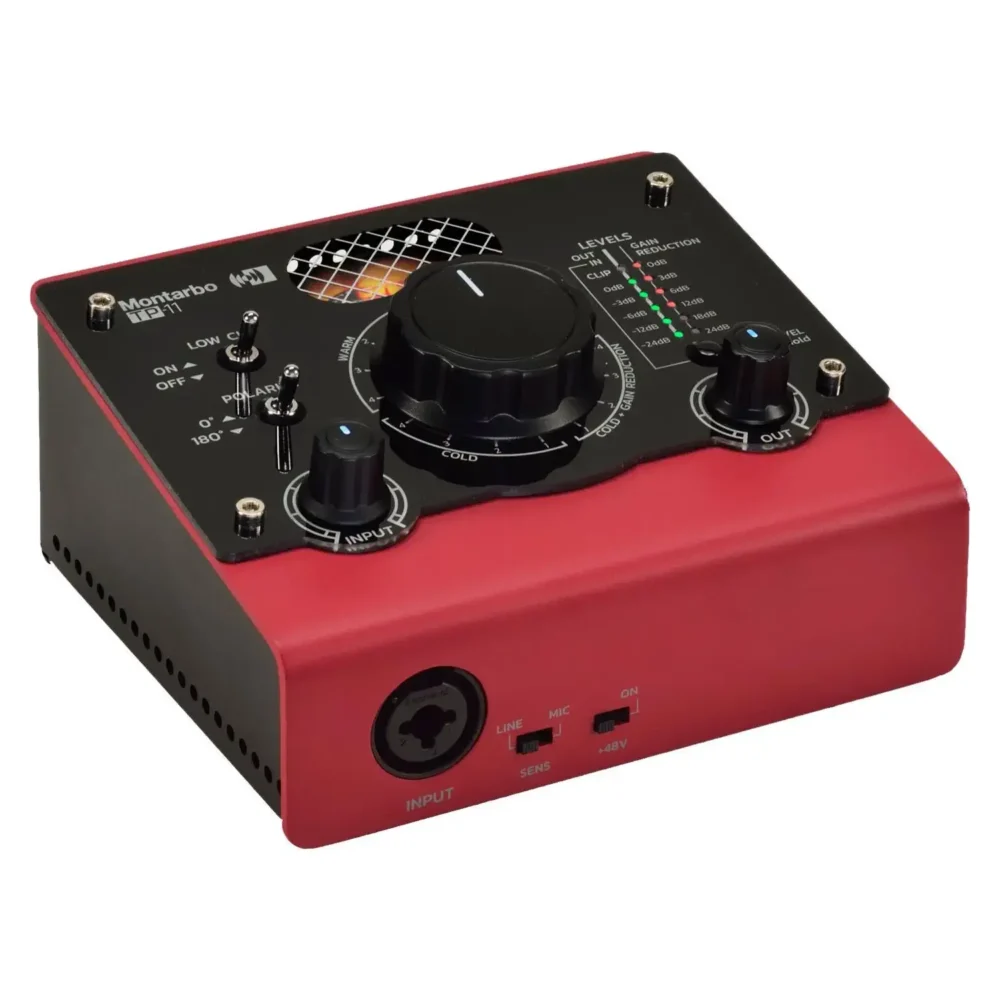

The TP-11 is a compact tube preamplifier with a fully analogue signal path. A rotary encoder selects 16 tone colour presets for microphones and instruments, and some presets engage a built-in compressor for dynamic control. Montarbo positions it for studio and live use, including vocals, instruments and sound design.

Specifications

• Brand: Montarbo
• Model: TP-11
• Type: Tube preamplifier, fully analogue signal path
• Presets: 16 tone colour presets (some with compression)
• Input: 1 x combo XLR/TRS balanced
• Insert: 1 x 6.35 mm

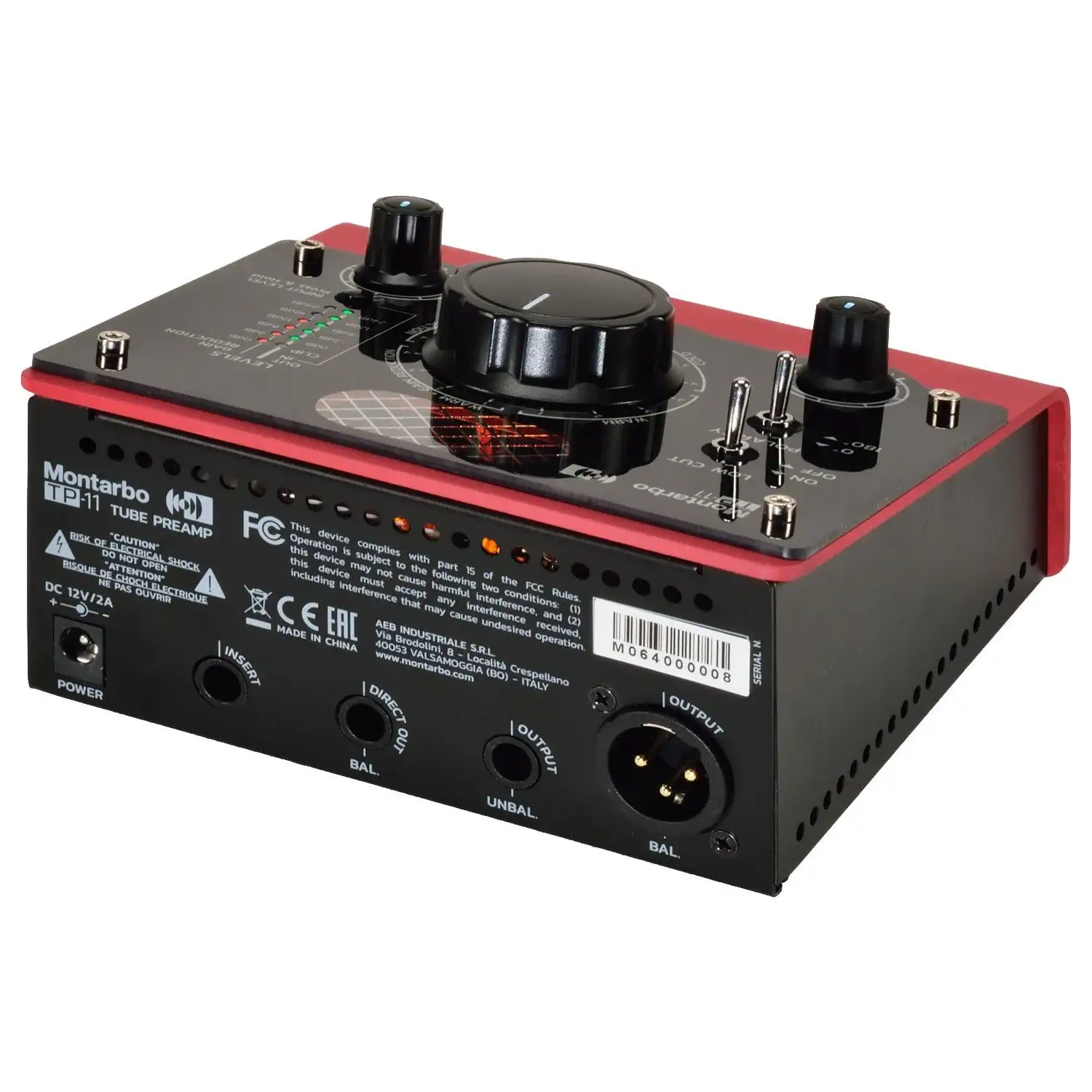

• Outputs: 1 x XLR balanced, 1 x 6.35 mm unbalanced, 1 x 6.35 mm TRS direct out
• Switches: Low cut, polarity, +48V, Line/Mic input
• Controls: Input level, output level, preset selector
• Low cut filter: -12 dB @ 50 Hz
• Frequency response: 10 Hz – 30 kHz (6 dB)
• Input impedance: 2 kOhm (XLR), 840 kOhm (TS jack)
• Output impedance: 600 Ohm (XLR), 300 Ohm (TS jack)
• Maximum input level: +15 dBu (XLR), +22 dBu (TS)
• Maximum output level: +28 dBu (XLR), +22 dBu (TS)
• CMRR: >75 dB (typical @ 1 kHz)
• Dynamic range: >100 dB (typical)
• S/N ratio: 90 dBu
