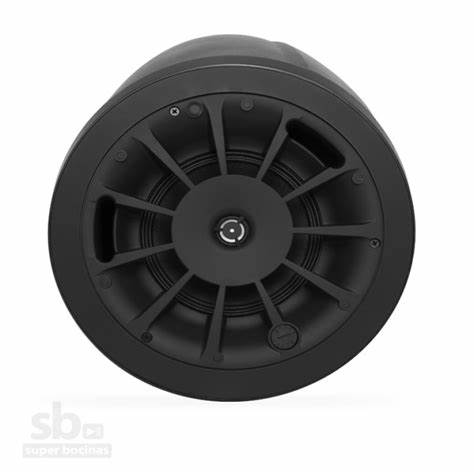

( 07 / 07 )Q-SYS AD-P4T-BK

The Q-SYS AD-P4T-BK is a premium 4.5-inch two-way full-range pendant loudspeaker, engineered for clear and consistent background and foreground music in commercial environments. Featuring a robust 70V/100V transformer and a sleek black ABS enclosure, it delivers professional-grade audio performance with easy installation.
4.5-inch polypropylene cone woofer and 0.75-inch silk dome tweeter for clear highs and defined midrange
Advanced voicing for articulate audio in challenging acoustic environments
Robust 70V/100V multi-tap transformer for distributed audio systems
Durable ABS enclosure with sleek black finish to blend into contemporary spaces
( Specifications )
| Nominal Impedance | 8 Ohms |
| Recommended Amplifier Power | 60W - 120W |
| Brand | Q-SYS |
| Certifications | CE, UL1480A, UL2043 |
| Color | Black |
| Connection Type | Euroblock (4-pin 5.08mm) |
| Country of Origin | China |
| Diameter | 192 mm |
| Directivity Index (DI) | 5 dB |
| Driver configuration | 2-way |
| Enclosure Finish | Black (RAL 9011) |
| Enclosure material | ABS |
| Frequency Response (-10 dB) | 70 Hz - 20 kHz |
| Frequency Response (±3 dB) | 90 Hz - 20 kHz |
