QSC Q-SYS CORE110F-V2 UnifiedCore
R 122 580
Limited availabilityQuantity
1
R 122 580
12 monthly paymentsfrom R 10 215 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September

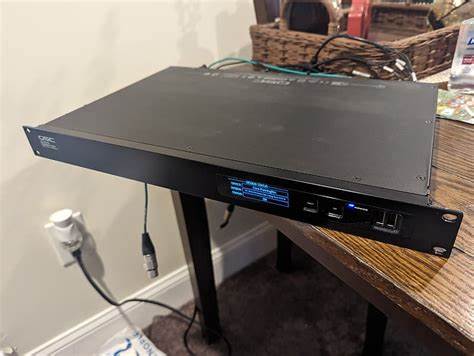

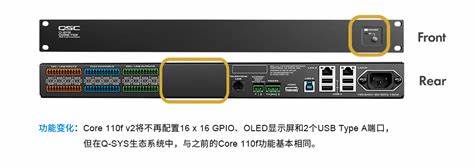

Estimated from today, excluding weekends.QSC Q-SYS CORE 110F-V2 Unified Core Processor
The QSC Q-SYS CORE 110F-V2 is a high-performance unified audio, video, and control processor designed for medium-sized venues, conference rooms, and corporate AV installations. It delivers robust signal processing, flexible connectivity, and seamless integration with multiple audio networking protocols.
Key Features
- 24 local audio I/O channels for direct connectivity
- Supports up to 128x128 total network audio I/O channels
- Comprehensive DSP functions with advanced audio routing
- Robust echo cancellation for clear sound quality
- Compatible with Q-LAN, Dante, and AVB audio networking protocols
- Network redundancy for reliable 24/7 operation
- Flexible control integration via LAN, GPIO, serial, and USB
- Supports third-party control solutions for versatile system management
- Intuitive Q-SYS design software for quick configuration and monitoring
- Rack-mountable design built for mission-critical applications
Specifications
- Model: QSC Q-SYS CORE 110F-V2
- Local Audio I/O Channels: 24
- Total Network Audio I/O Channels: 128x128
- Audio Networking Protocols: Q-LAN, Dante, AVB
- Control Interfaces: LAN, GPIO, serial, USB
( Specifications )
| Input Impedance | 3.6 kΩ (mic), 20 kΩ (line) |
| Analog Inputs | 8 (Mic/Line) |
| Analog Outputs | 8 (Line) |
| Audio DSP Channels | 128x128 total network I/O channels |
| Audio Formats Supported | Uncompressed PCM |
| Audio Networking | Q-LAN (Audinate Dante optional via license) |
| Bit Depth | 24-bit |
| Certifications | CE, UL, FCC part 15, RoHS |
| Chassis Material | Steel |
| Control Protocols Supported | Q-SYS Control, LUA scripting |
| Cooling Method | Internal fan |
| Country of Origin | USA |
| Dante Support | Optional (license required) |
| Encryption Support | AES-256 (network audio) |
