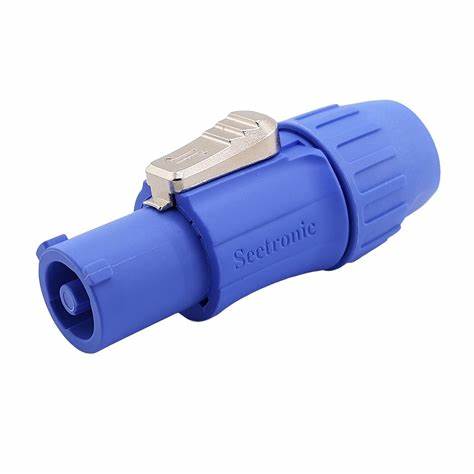

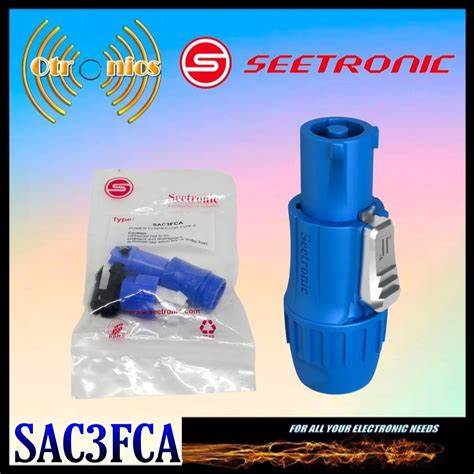

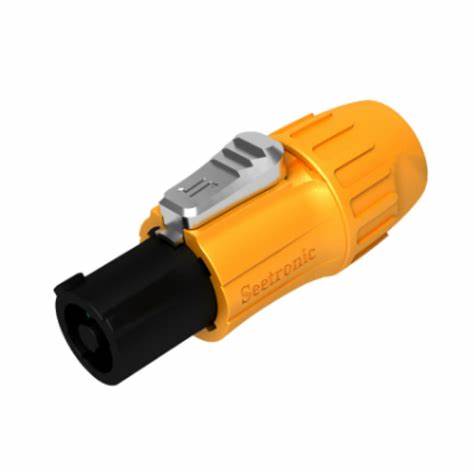

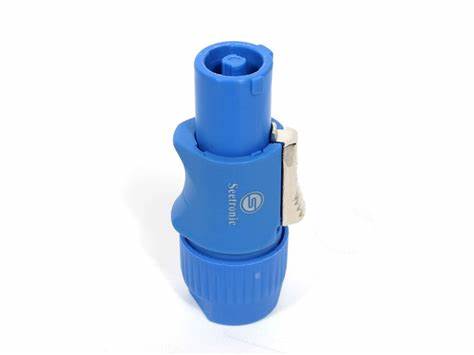

SEETRONIC SAC3FCAPower Connector
R 140
AvailableQuantity
1
R 140
12 monthly paymentsfrom R 12 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byTuesday, 28 July
Estimated from today, excluding weekends.The SEETRONIC SAC3FCA is a high-quality locking AC power connector designed for professional audio, video, and lighting applications. Compatible with industry-standard powerCON A chassis connectors, it offers a reliable and robust solution for quick and safe mains connections in stage and studio environments.
Durable housing made from impact-resistant materials for long-lasting performance

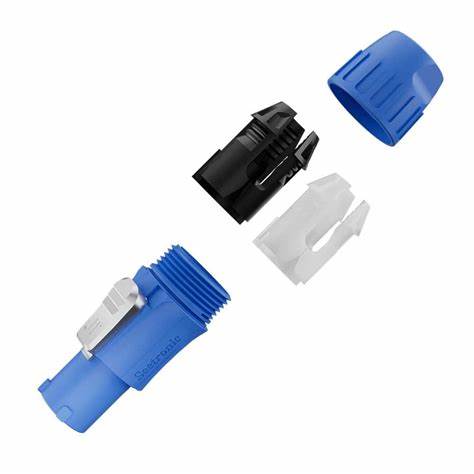

Screw-type terminations with secure strain relief for stable cable connections
Rated for high current applications up to 20A/250V
Locking design prevents accidental disconnections
( Specifications )
| Application | Mains Power Connections |
| Approvals | CE, RoHS |
| Assembly Method | Field Assembly |
| Body Diameter | 28 mm |
| Brand | SEETRONIC |
| Cable Mount | Yes |
| Cable Outer Diameter Supported | 6-14 mm |
| Chassis Mount | No |
| Color | Blue |
| Connector Body Material | Polyamide |
| Connector Standard | PowerCON TRUE1 Compatible |
| Contact Plating | Nickel |
| Contact Resistance | ≤3mΩ |
| Contact Termination | Screw |
