SEETRONIC SAC3MXPowerCONCompatible
Contact for availability
Sold out
12 monthly paymentsfrom R 16 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byMonday, 28 September

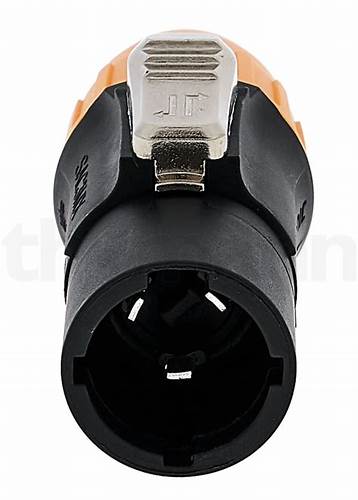

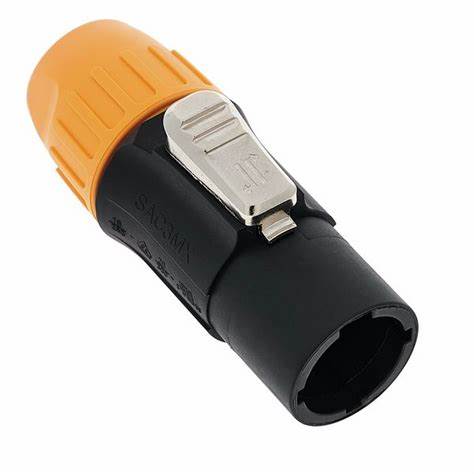

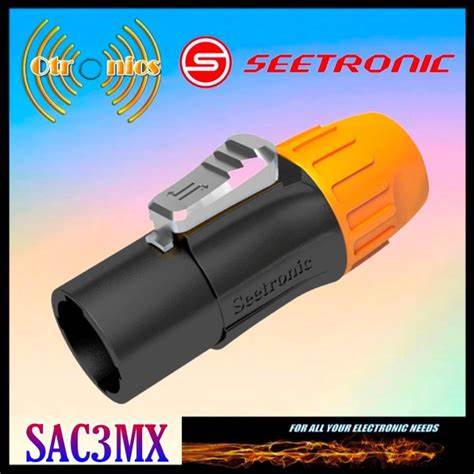

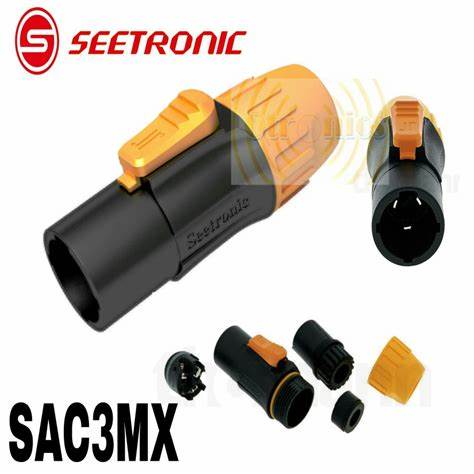

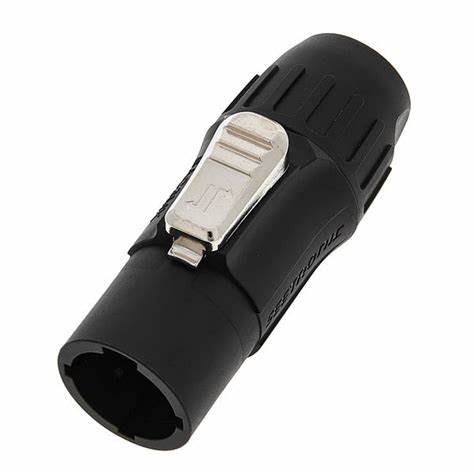

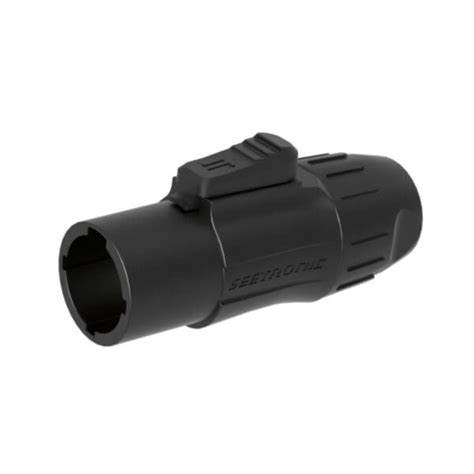

Estimated from today, excluding weekends.SEETRONIC SAC3MX PowerCON Compatible Cable Connector Male
The SEETRONIC SAC3MX is a premium male power cable connector designed for secure and reliable power connections in professional audio, video, and stage lighting applications. Built for durability and high performance, this PowerCON-compatible connector ensures safe, stable connections in demanding environments.
Key Features
- High-current capacity: 20A at 250V AC
- Robust plastic housing with ergonomic design
- Quick-locking system for secure connections
- Compatible with NAC3MPX standard chassis sockets
- Supports cables with outer diameters from 6 mm to 12 mm
- Screw terminal connection method for firm wiring clamp
- Resistant to vibration and accidental disconnects
- Ideal for rental, touring, and heavy-duty stage equipment
Specifications
- Model: SEETRONIC SAC3MX
- Current Rating: 20A
- Voltage Rating: 250V AC
- Cable Diameter Compatibility: 6 mm to 12 mm
- Connection Type: Screw terminal
- Compatibility: PowerCON compatible, mates with NAC3MPX chassis sockets
( Specifications )
| Application | Power supply for audio, video, and stage equipment |
| Brand | SEETRONIC |
| Cable Entry Diameter | 6-15mm |
| CE Marked | Yes |
| Color | Blue |
| Color Code | Blue (input) |
| Compliance Standards | IEC 60320, DIN VDE 0623 |
| Connection Standard | powerCON compatible |
| Connector Type | Power Connector |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Resistance | <3 mΩ |
| Country of Origin | China |
| Dielectric Strength | 2.8kV (AC, 1 min) |
