( 08 / 08 )Shelly3EM-63T Gen3 · SHELLY-SWI-3EM-63-GEN3

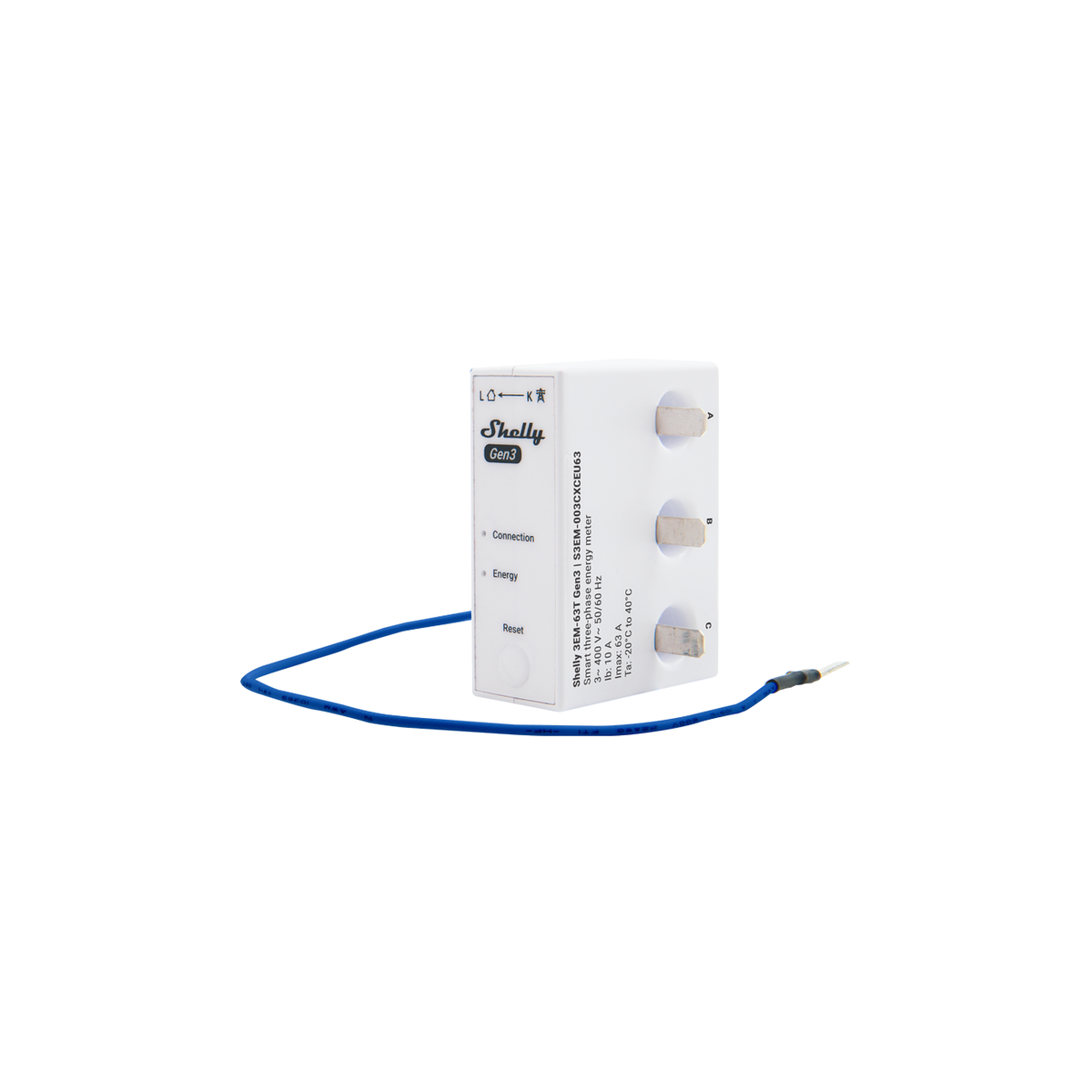

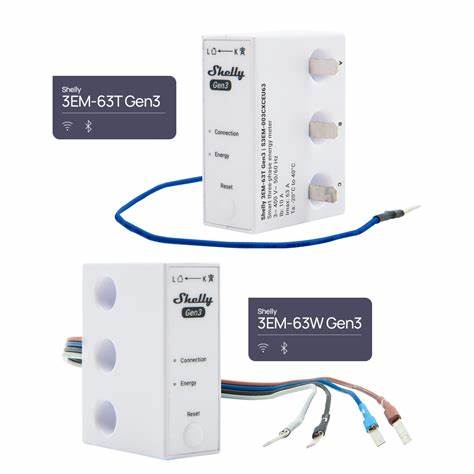

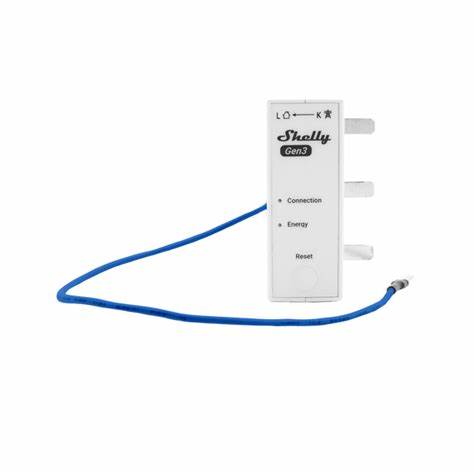

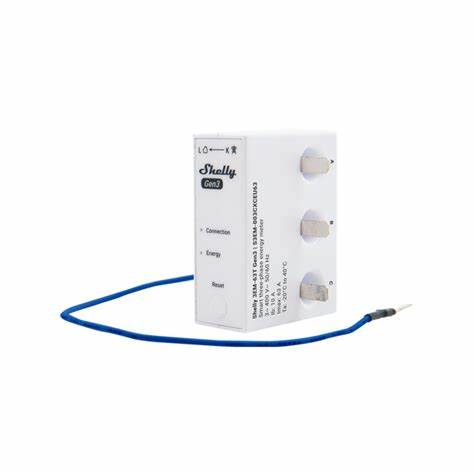

Shelly 3EM-63T Gen3
R 2 500
AvailableQuantity
1
R 2 500
12 monthly paymentsfrom R 208 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byFriday, 18 September
Estimated from today, excluding weekends.Shelly 3EM-63T Gen3: Smart Three-Phase Energy Meter
The Shelly 3EM-63T Gen3 is an advanced smart three-phase energy meter designed for accurate measurement and monitoring of electrical power consumption in residential, commercial, and industrial environments. It provides real-time data on energy usage, voltage, current, and power factor for each phase, helping optimise energy management and reduce costs.
Key Features
- Monitors three separate circuits simultaneously
- Wi-Fi connectivity for seamless smart home integration
- Remote control via Shelly Cloud app and compatible platforms
- Easy DIN rail installation
- Supports up to 63A per phase
- Over-the-air firmware updates for enhanced performance and security
- Built-in web interface for detailed consumption analysis and historical data
- Customisable notifications for energy usage alerts
- Communication protocols: HTTP, MQTT, and WebSockets
- Robust, compact design with overload and short-circuit protection
Specifications
- Model: Shelly 3EM-63T Gen3
- Maximum current: 63A per phase
- Connectivity: Wi-Fi
- Installation: DIN rail mount
- Communication: HTTP, MQTT, WebSockets
( Specifications )
| Accuracy Class | Class 1 (±1%) |
| API Support | Yes (REST, MQTT, CoAP) |
| Bluetooth Version | 4.2 |
| Cloud Support | Yes (Shelly Cloud) |
| Color | White |
| Communication Protocols | Wi-Fi 802.11 b/g/n, Bluetooth |
| CT Clamp Model | Sold separately |
| CT Clamp Supported | Yes |
| Cumulative Energy Counters | Yes, resettable |
| Current Measurement | Yes, per phase |
| Data Storage | Local, Cloud |
| Dimensions (WxHxD) | 90 x 52 x 57 mm |
| Display Type | No built-in display |
| Enclosure Material | Plastic |
