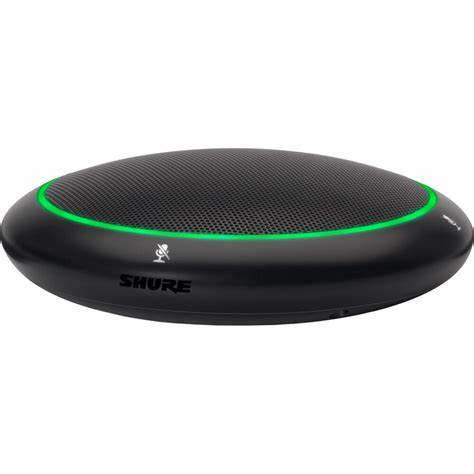

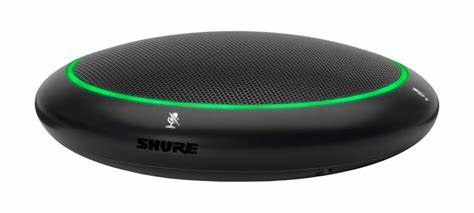

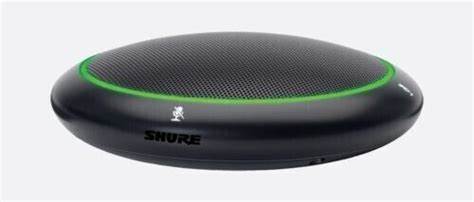

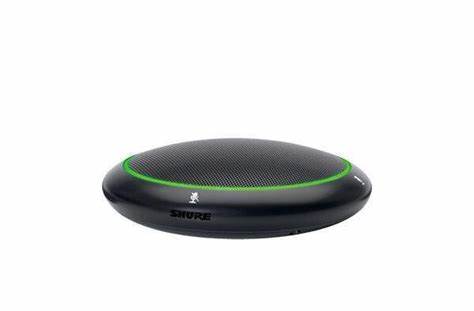

SHURE MXA310B

The Shure MXA310B is the black Microflex Advance table array microphone for AV conferencing in boardrooms, huddle rooms and multi-purpose spaces. Steerable Coverage provides selectable polar patterns on four independent channels, with an additional automatic mixing channel, all delivered over Dante digital networked audio on a single PoE network cable.

Key Features

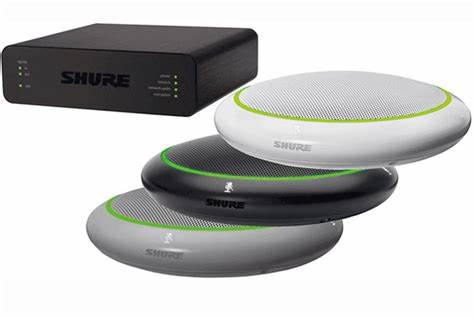

• Black finish MXA310 table array (series also available in white and aluminium)
• Independently adjustable polar patterns per channel: Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
• Toroid pattern for 360° coverage while rejecting sound from directly above (e.g. HVAC / projectors)
• 5 Dante transmit channels: 4 independent + 1 Automatic mixing
• Power over Ethernet (PoE), Class 0; maximum power consumption 4 W
• Browser-based HTML5 control application; Shure Designer software and Crestron/AMX control strings

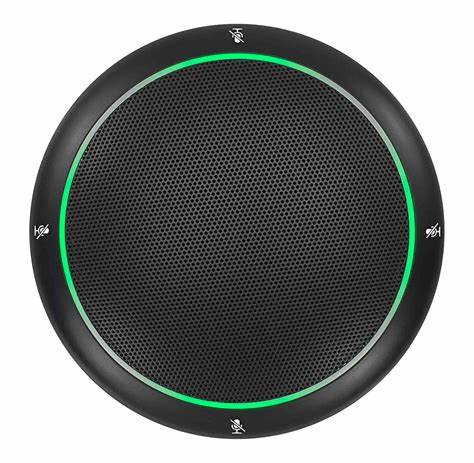

• Configurable multi-coloured LED light ring for mute and coverage confirmation

Specifications

Figures below are from the official Shure MXA310 Specifications document (Version 0, 2019-E). All specifications measured from cardioid polar pattern unless otherwise noted; other patterns within ±3 dB.

General and networking

Source: Shure MXA310 Specifications PDF - Specifications block (Polar Pattern through Cable Requirements).

Model / finish	MXA310B (black)
Polar patterns (per channel)	Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Connector type	RJ45
Power requirements	Power over Ethernet (PoE), Class 0
Power consumption	4 W, maximum
Weight	362 g (0.8 lbs)
Dimensions (H × W × D)	3.6 × 13.4 × 13.4 cm (1.4 × 5.3 × 5.3 in.)
Control application	HTML5 browser-based
Operating temperature range	−6.7 °C (20 °F) to 40 °C (104 °F)
Storage temperature range	−29 °C (−20 °F) to 74 °C (165 °F)
Cable requirements	Cat 5e or higher (shielded cable recommended)

Audio and DSP

Source: Shure MXA310 Specifications PDF - Audio section (Frequency Response through Built-in Digital Signal Processing).

Frequency response	100 to 20,000 Hz
Dante channel count	5 total (4 independent transmit + 1 Automatic mixing transmit)
Sampling rate	48 kHz
Bit depth	24
Sensitivity	−21 dBFS/Pa (at 1 kHz, −15 dB gain setting)
Maximum SPL	115.2 dB SPL (1 kHz at 1% THD, −15 dB gain setting)
Signal-to-noise ratio (Cardioid)	75 dB (ref. 94 dB SPL at 1 kHz, −15 dB gain)
Signal-to-noise ratio (Toroid)	67 dB (same conditions)
Latency	<1 ms (not including Dante latency)
Self noise (Cardioid)	19.2 dB SPL-A (−15 dB gain setting)
Self noise (Toroid)	26.8 dB SPL-A (−15 dB gain setting)
Dynamic range (Cardioid)	96 dB (−15 dB gain setting)
Dynamic range (Toroid)	90 dB SPL (−15 dB gain setting)
Per-channel DSP	Equalizer (4-band parametric), Mute, Gain (140 dB range)
System DSP	Automatic mixing; Low-Cut Filter (−12 dB/octave @ 150 Hz)

Datasheets

Public manufacturer documents (link only - this does not add a downloads module):

• Shure MXA310 Specifications (PDF)
• Shure MXA310 User Guide (en-US, PDF)
• Shure MXA310 User Guide (HTML)
