SHURE P9TE-G7E

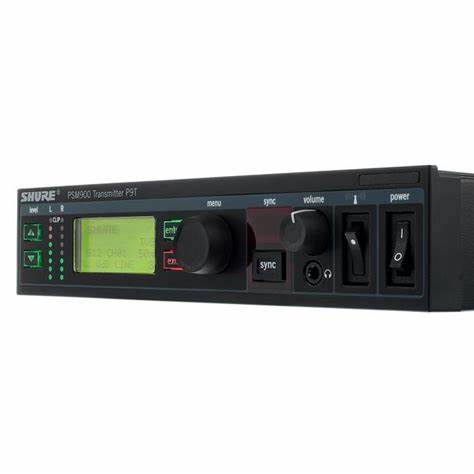

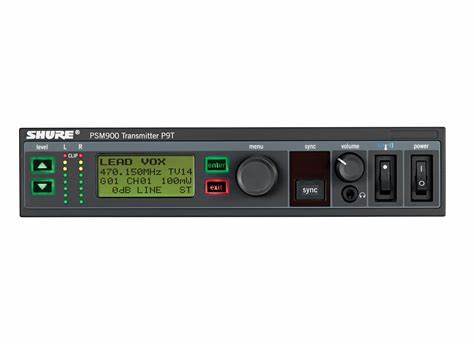

The Shure P9TE-G7E is a PSM 900 half-rack wireless in-ear monitor (IEM) transmitter on frequency band G7E (506-542 MHz). It is the P9T / P9TE rack transmitter for personal monitoring - not an AV receiver.

Key Features

• PSM 900 series rack-mount IEM transmitter (P9T / P9TE)
• Band G7E: 506-542 MHz; selectable RF output 10 / 50 mW
• Combination XLR / 6.35 mm TRS balanced inputs; +4 dBu / −10 dBV nominal levels; phantom power protection up to 60 V DC
• Patented Shure Audio Reference Companding; stereo MPX FM modulation
• Up to 20 compatible frequencies per band; tuning bandwidth 36-40 MHz (region dependent)
• Half-rack form factor; 15 V DC power (external supply)

Specifications

Figures below are from the official Shure PSM 900 User Guide (en-US). Band row used: G7E 506-542 MHz, 10/50 mW only.

PSM 900 system

Source: Shure PSM900 User Guide - Specifications (PSM 900 system block).

RF carrier range (system)	470-952 MHz (varies by region)
Compatible frequencies per band	20
Tuning bandwidth	36-40 MHz (varies by region)
Operating range	90 m (300 ft), environment dependent
Stereo separation	60 dB
Audio frequency response	35 Hz-15 kHz (±1 dB)
Signal-to-noise ratio	90 dB typical (A-weighted)
Total harmonic distortion	<0.8% typical (ref. ±34 kHz deviation @ 1 kHz)
Companding	Patented Shure Audio Reference Companding
Spurious rejection	>80 dB typical (ref. 12 dB SINAD)
Frequency stability	±2.5 ppm
Modulation	FM, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
Operating temperature	−18 °C to +57 °C

P9T transmitter (G7E)

Source: Shure PSM900 User Guide - P9T Specifications; Frequency Range table row G7E.

Model / band	P9TE-G7E (P9T transmitter, band G7E)
Frequency range (G7E)	506-542 MHz
RF output power (G7E)	10 / 50 mW selectable
RF output impedance	50 Ω (typical)
Net weight	850 g
Dimensions (H × W × D)	42 × 197 × 177 mm
Power requirement	15 V DC, 415 mA, typical
Audio input connectors	Combination XLR and 6.35 mm (1/4") TRS
Input configuration	Electronically balanced
Input impedance	70.2 kΩ (actual)
Nominal input level	Switchable: +4 dBu, −10 dBV
Maximum input level (+4 dBu setting)	+29.2 dBu
Maximum input level (−10 dBV setting)	+12.2 dBu
Phantom power protection	Up to 60 V DC
Audio loop output	6.35 mm (1/4") TRS, electronically balanced (connected directly to inputs)
