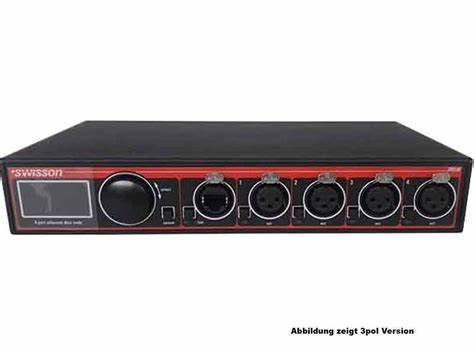

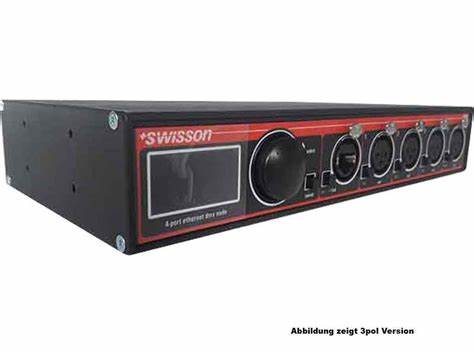

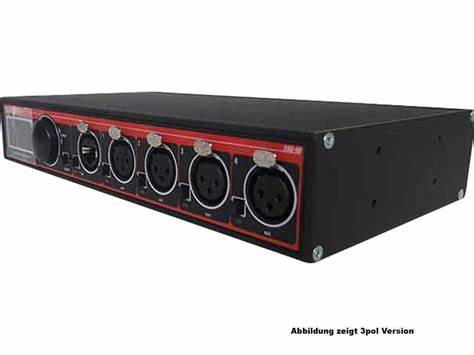

SWISSON XND-4B5Ethernet to DMXConverter
R 22 280
Limited availabilityQuantity
1
R 22 280
12 monthly paymentsfrom R 1 857 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September
Estimated from today, excluding weekends.SWISSON XND-4B5 Ethernet to DMX Converter
The SWISSON XND-4B5 is a professional 4-port Ethernet to DMX/RDM converter designed for seamless integration in lighting control networks. It efficiently routes sACN and Art-Net data streams to physical DMX lines, making it ideal for event venues, theatres, broadcast studios, and architectural lighting installations.
Key Features
- Professional-grade 4-port Ethernet to DMX/RDM converter
- Supports sACN and Art-Net protocols
- Each DMX port individually assignable to different universes
- Ports configurable as input or output for flexible network design
- Intuitive front panel controls with OLED display for real-time status
- RDM (Remote Device Management) support for bi-directional communication
- Power over Ethernet (PoE) compatible for simplified installation
- Rugged design ensures reliable performance in demanding environments
- Swiss engineering quality and durability
Specifications
- Model: SWISSON XND-4B5
- Number of DMX Ports: 4
- Supported Protocols: sACN, Art-Net, RDM
- Display: OLED front panel
- Power: Power over Ethernet (PoE) compatible
( Specifications )
| Backup/Restore Config | Web interface |
| Brand | Swisson |
| Certifications | CE,RoHS |
| Configuration Interface | Web browser based, graphical display with controls |
| Cooling Method | Passive |
| Dimensions (WxHxD) | 19 in x 1.73 in x 5.51 in (482 mm x 44 mm x 140 mm) |
| DIN Sync Capability | No |
| Display Type | OLED graphical display |
| DMX Data Integrity | Full optical isolation per port |
| DMX output | Isolated electronic drivers |
| DMX Output Connectors | 5-pin XLR female |
| DMX Output Refresh Rates | Up to 40 Hz |
| DMX Protocols Supported | sACN,E1.31,Art-Net I,Art-Net II |
| DMX Universes | 4 |
