Vision VFM-W8X4V/2Display Wall Mount

Vision VFM-W8X4V/2 Display Wall Mount — fixed-angle wall mount for 47–75" flat-panel displays up to VESA 800x400mm, 60 kg SWL, with ADA-compliant 29mm wall clearance.

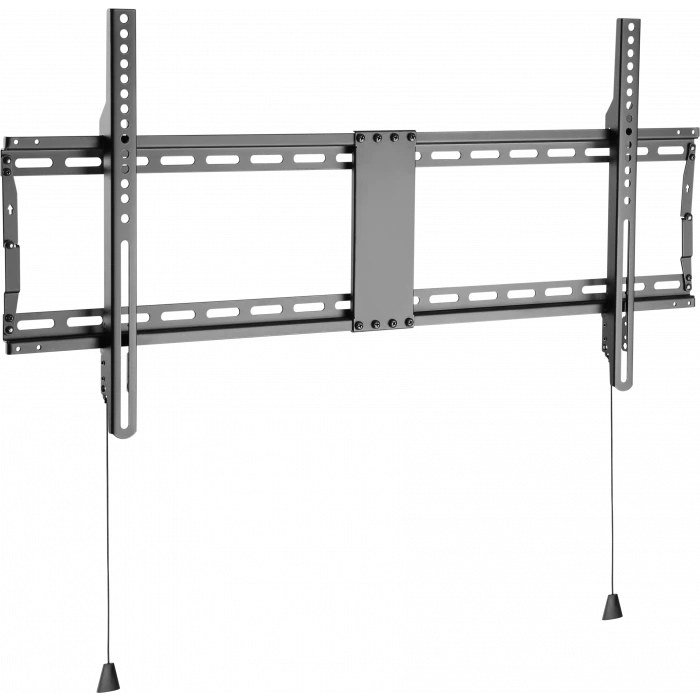

The Vision VFM-W8X4V/2 is a non-tilt fixed wall mount for large-format LCD and LED displays from 47 to 75 inches. At just 29mm off the wall, it meets ADA regulations and reduces snagging risk. The pre-assembled folding wall plate deploys in seconds. Locking strips prevent opportunistic lifting; quick-release cords allow authorised removal. An open centre allows cables to be routed directly into the wall behind the screen. All M5, M6, and M8 bolts are included. Curved screens are not supported.

Key features

• Fits 47–75" flat-panel displays, VESA up to 800x400mm
• 60 kg safe working load
• 29mm wall clearance — ADA compliant, minimal protrusion
• Non-tilt fixed design for maximum strength
• Pre-assembled folding frame — deploys in seconds
• Locking strips prevent display from being lifted off bracket
• Open centre wall plate for hidden in-wall cable routing
• Slotted mounting holes for easy horizontal alignment on stud walls
• Lockable — holes for padlock (not included)
• All M5/M6/M8 VESA bolts included

Specifications

• Model: VFM-W8X4V/2
• VESA: Up to 800x400mm
• Display size: 47–75" (flat panel only — no curved screens)
• Safe working load: 60 kg
• Wall clearance: 29mm
• Tilt: None (fixed)
• Compliance: ADA

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
