( 01 / 01 )Wharfedale SW-12Sub Black 12" HomeTheatre

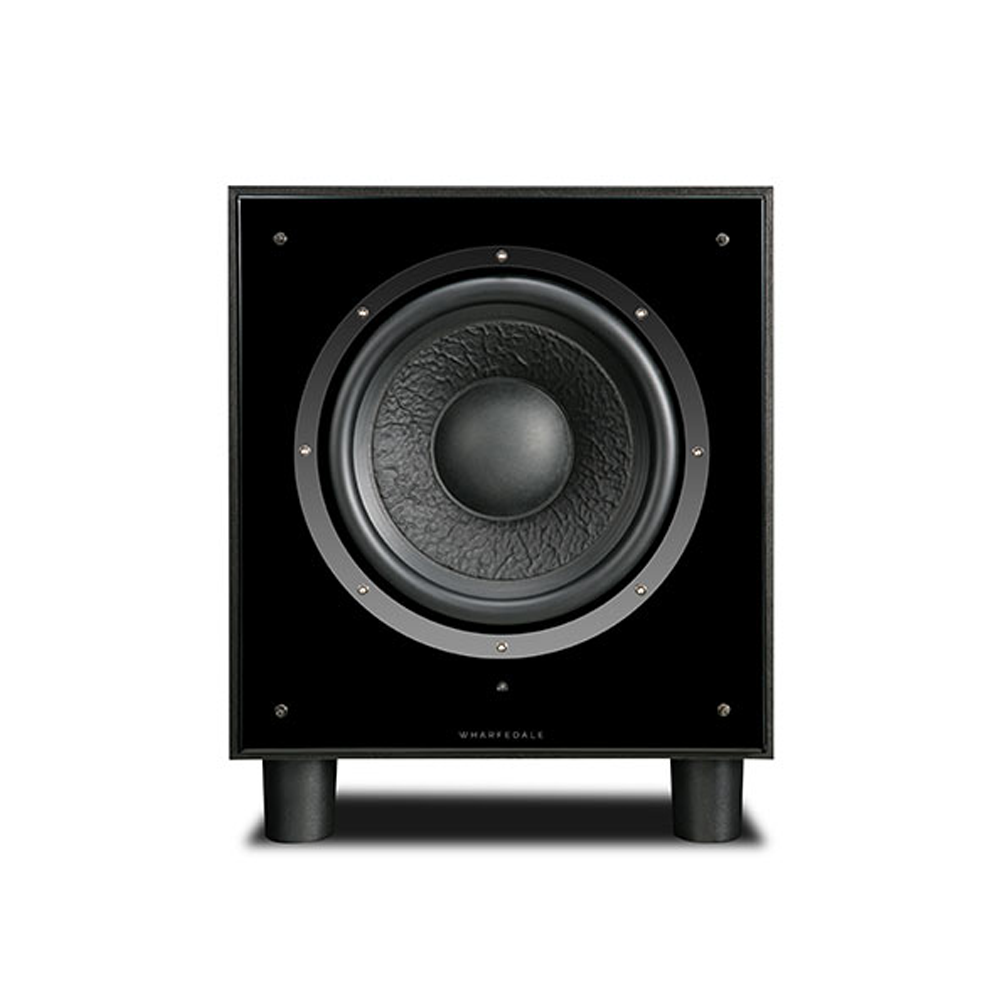

Wharfedale SW-12 Sub Black - 12" Home Theatre Subwoofer
The Wharfedale SW-12 Subwoofer delivers powerful, controlled bass with audiophile-quality low frequencies, perfect for home theatre and music enthusiasts seeking immersive sound.
Overview
The SW series subwoofers combine innovative drive units, amplifier modules, and filter stages to balance power and sound quality. They provide remarkable sound pressure levels while maintaining precise control for an exceptional listening experience.
Featuring non-pressed paper cones for increased self-damping, improved transient response, and enhanced structural rigidity, the SW-12 ensures superior bass impact. Copper-lined centre vents reduce magnetic distortion and improve heat dissipation for reliable performance.
Optimised for high impact at low frequencies, the SW-12 is ideal for movies and music. Its cabinet finishes, including White Sandex and Blackwood Vinyl with a hi-gloss baffle, complement matching floorstanding speakers.
Key Features
- 12" (300mm) long-throw cone drive unit
- 300W amplifier power output (450W peak)
- Frequency response: 35 - 120Hz ±3dB
- Phase inversion and auto on-off features
- Stereo Line In (2 x RCA Phono) and Mono (LFE) Line In (RCA Phono)
- High signal-to-noise ratio (≥85dB)
- Compact design with premium cabinet finishes
Specifications
| Description/Format | Active Dynamic-Drive IB subwoofer system |
|---|---|
| Drive Units | 1 x 12" (300mm) cone long-throw |
| Frequency Response | 35 - 120Hz ±3dB |
| Amplifier Power Output | 300W |
| Peak Power Output | 450W |
| Line Input Sensitivity | 200mV for maximum output |
| Crossover Range | 30 - 150Hz |
| Inputs | Stereo Line In (2 x RCA Phono), Mono (LFE) Line In (RCA Phono) |
| Input Impedance | Line Input 10kΩ, LFE 5kΩ |
| Signal-to-noise ratio (S/N) | ≥85dB |
| Average Max Output @1m | 118dB |
| Features | Phase inversion, Auto on-off |
| Dimensions | Height: 488mm (430 + 58mm with feet), Width: 395mm, Depth: 457mm (442 + 15mm) |
| Net Weight | 22.1kg |
| Finishes | Cabinet: White Sandex / Blackwood Vinyl with hi-gloss baffle |
( Specifications )
| impedance | 8 Ohms |
| Frequency Response | 25Hz - 150Hz |
| Additional Features | Auto power on/off , LED indicator, Phase switch |
| Amplifier | Built-in |
| Audio Amplifier | Integrated |
| Brand | Wharfedale |
| Cable Details | Power Cable Included |
| Color | Black |
| Connectivity | Wired |
| Control Type | Knobs |
| Controls | Volume, Phase Control, Crossover Frequency |
| Country of Origin | United Kingdom |
| Crossover Frequency | 40Hz - 150Hz Adjustable |
| Dimensions | 14.7 x 14.6 x 16.6 inches |
