AjaxMultiTransmitterJeweller

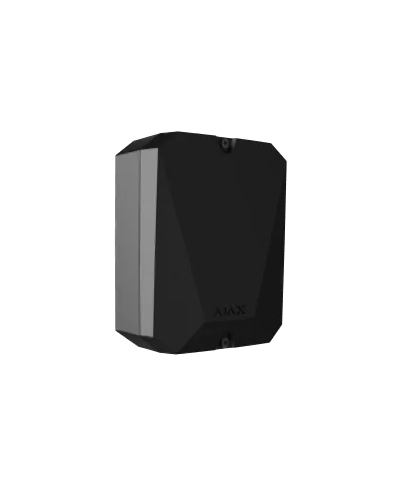

Ajax MultiTransmitter Jeweller — a 36-zone wired integration module that connects existing hardwired detectors and contacts to your Ajax wireless system.

The Ajax MultiTransmitter bridges the gap between legacy wired alarm installations and the Ajax Jeweller ecosystem. Up to 36 wired zones can be connected — including existing PIR detectors, door and window contacts, glass break sensors, and smoke detectors — and their signals are relayed to the Ajax Hub as standard Jeweller events. This allows a full retrofit of a wired alarm system to Ajax management, app control, and cloud monitoring without replacing any sensors. Tamper-protected enclosure. Black finish, indoor rated. A white variant is also available.

Key features

• 36 wired input zones for legacy hardwired detectors
• Connects wired PIRs, contacts, glass break, smoke detectors to Ajax Hub
• Relays wired zone states as standard Ajax Jeweller events
• Enables full Ajax app and monitoring for existing wired installations
• Tamper-protected enclosure
• Indoor rated, black finish

Specifications

• Model: AJAX-MT-INDR-B
• Colour: Black
• Wired input zones: 36
• Zone types: NO/NC contacts, resistor-terminated
• Hub protocol: Jeweller wireless
• Rating: Indoor
• Power: External 12V DC
• Operating temperature: 0°C to +45°C
