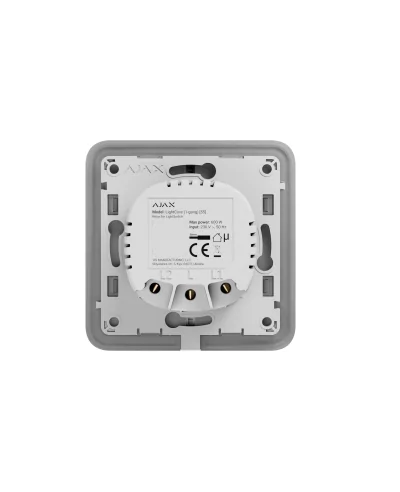

Ajax LightCore2-Gang SmartSwitch

Ajax LightCore 2-Gang — a wireless in-wall relay switch that controls two independent lighting circuits from a single 2-gang backbox.

The Ajax LightCore 2-Gang installs directly into your existing 2-gang wall box and connects to your live wiring. No neutral wire is required. It communicates wirelessly with your Ajax Hub via Jeweller and is controlled through the Ajax app or paired Ajax SoloButtons (sold separately). Each gang can be controlled independently, making it well-suited for rooms with multiple lighting zones or combined light-and-fan circuits. This is the relay (on/off) variant; a Dimmer variant is available separately for dimmable lighting. SoloButton wall controller not included.

Key features

• In-wall wireless relay switch for two independent circuits (2-gang)
• No neutral wire required
• Each gang independently controllable via Ajax app
• Pairs with Ajax SoloButton for physical wall control (sold separately)
• Wireless Jeweller protocol
• Compatible with Ajax automations and schedules

Specifications

• Model: AJAX-LC-2-GANG
• Gang: 2 (two independent circuits)
• Switch type: Relay (on/off, not dimmable)
• Protocol: Jeweller wireless
• Wireless range: Up to 1,750m open air
• Load: Resistive/inductive (lighting)
• Neutral wire: Not required
• SoloButton: Sold separately
• Operating temperature: 0°C to +45°C
