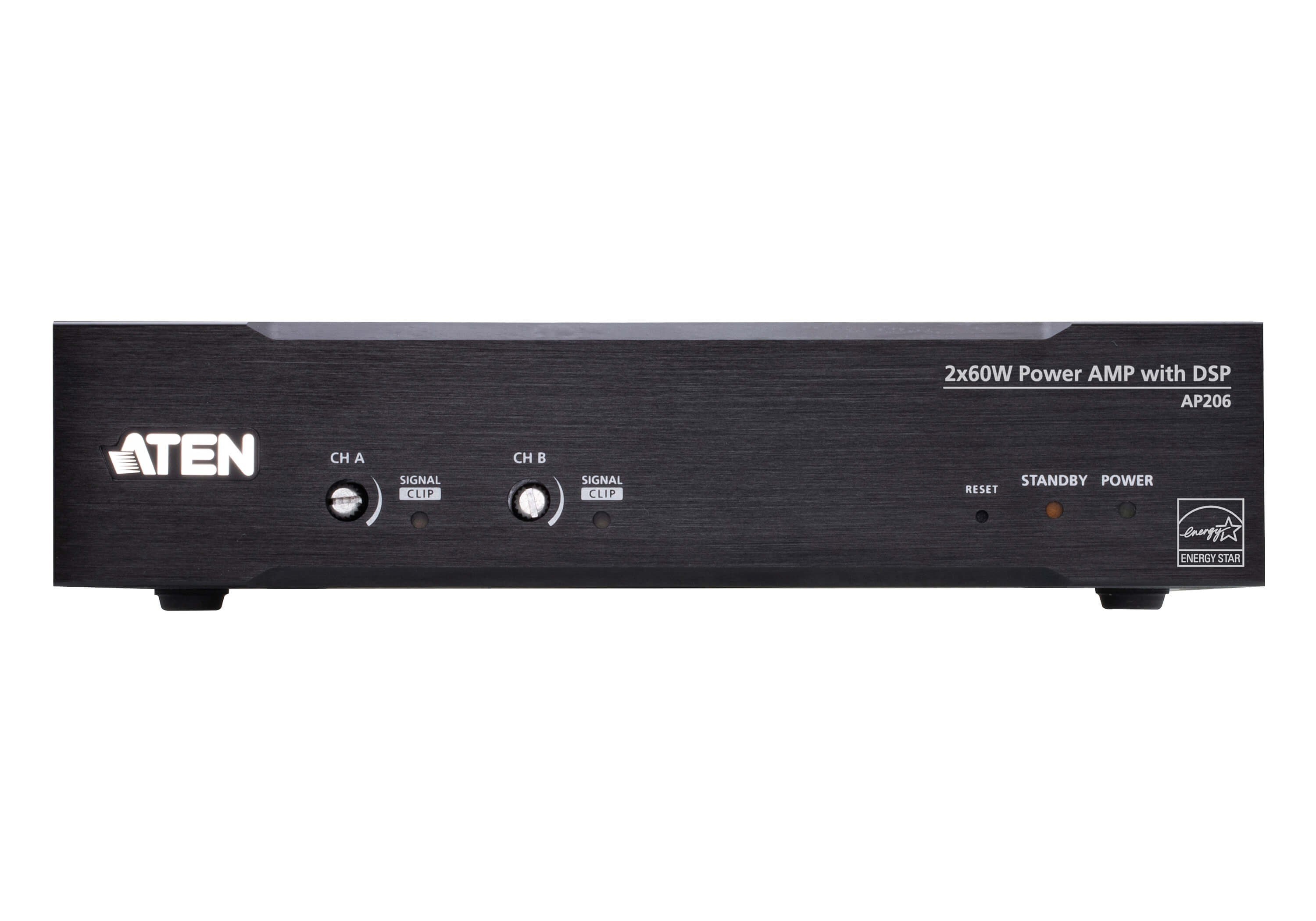

Aten AP206Dual-Channel 60WDSP

Aten AP206 — dual-channel 60W DSP amplifier with WebGUI configuration, 5-band EQ, delay, and limiter, driving 4Ω low-impedance or 70 V/100 V distributed speaker systems for professional public address applications.

The AP206 delivers 60W per channel with a built-in DSP providing comprehensive tuning control — Speaker EQ, 5-band parametric EQ, delay, limiter, and up to 20 presets, all configurable through an intuitive WebGUI without dedicated control software. Balanced and unbalanced line-level inputs suit a wide range of signal sources. In Bridge mode, the two channels combine to drive a single 4Ω loudspeaker or a 70 V/100 V line at higher power. A ground lift switch eliminates hum caused by power circuit ground loops. Class D topology keeps the enclosure compact and efficient.

Key features

• 2× 60W per channel — dual-channel Class D amplifier
• Built-in DSP: Speaker EQ, 5-band EQ, delay, limiter, up to 20 presets
• WebGUI configuration — no dedicated software required
• Balanced and unbalanced line-level inputs
• Drives 4Ω low-impedance or 70 V/100 V distributed lines (Bridge mode)
• Ground lift for hum elimination

Specifications

• Output power: 2× 60W per channel
• Output: 4Ω or 70 V/100 V (Bridge mode)
• Amplifier class: Class D
• DSP: Speaker EQ, 5-band EQ, delay, limiter, 20 presets
• Configuration: WebGUI
• Inputs: Balanced and unbalanced line level
• Ground lift: Yes
