( 06 / 06 )Cloud CDI-CV22-Channel DanteInput

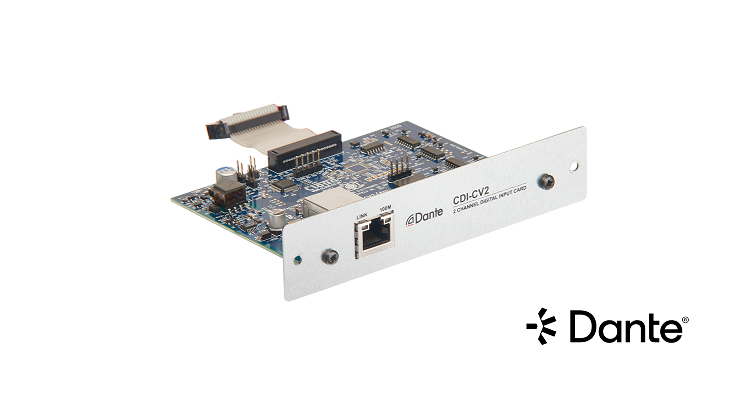

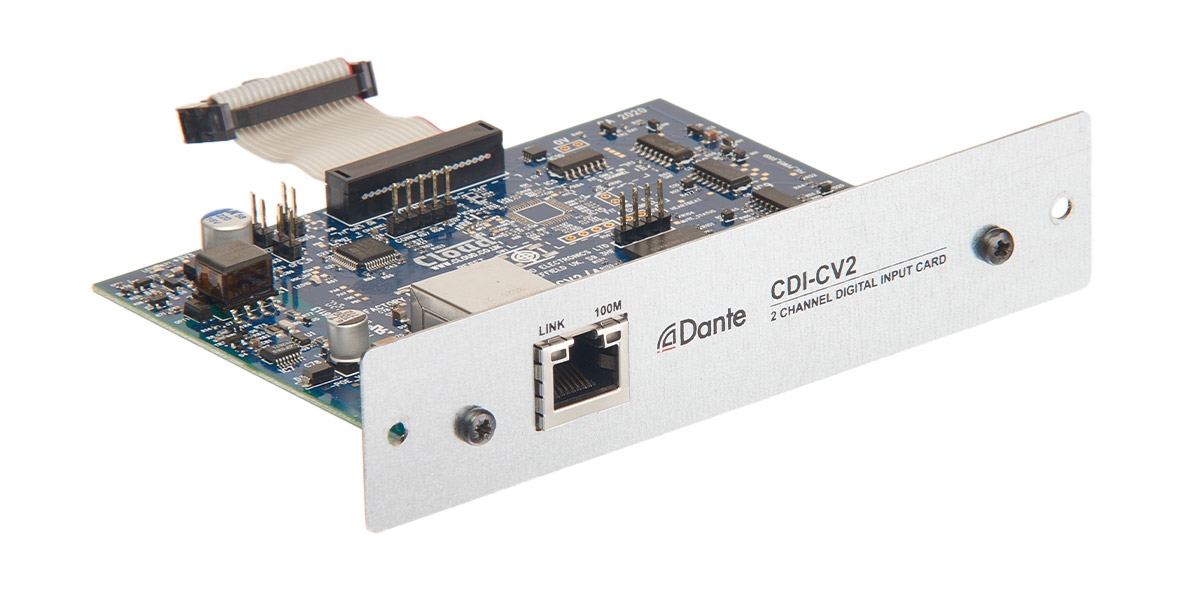

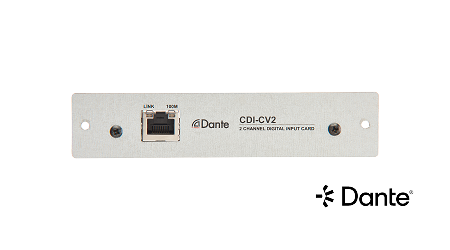

The Cloud CDI-CV2 is a dedicated 2‑channel Dante input card engineered to bring networked audio connectivity to the Cloud CVA2500 amplifier. By adding the CDI-CV2, integrators can subscribe the amplifier directly to Dante audio streams over standard Ethernet, eliminating long analog cable runs, simplifying rack wiring, and enabling flexible routing from centralized or distributed sources. Once installed by qualified personnel, the CDI-CV2 appears on the Dante network for quick discovery and configuration via Dante Controller, allowing straightforward channel naming, subscription, and signal management. The card delivers the low‑latency, synchronized performance that Dante networks are known for, helping maintain audio quality and timing consistency across large or multi‑zone systems. Ideal for modern commercial installations, the CDI-CV2 helps venues adopt scalable, IT‑friendly audio transport without compromising reliability. Whether feeding background music, announcements, or program audio, the two Dante input channels can be routed directly to the CVA2500, supporting streamlined system designs in hospitality, retail, corporate, education, houses of worship, leisure, and transportation environments. Using existing network infrastructure, the CDI-CV2 supports clean, efficient deployment and makes it easier to expand or reconfigure systems as needs evolve. Centralize sources in a headend, deliver content across the network, and minimize signal degradation typically associated with long analog runs. With the CDI-CV2, the CVA2500 becomes a network‑ready endpoint in a Dante ecosystem, enabling powerful routing options and straightforward day‑to‑day operation. Note: Dante network, compatible switches, and configuration via Dante Controller are required. Amplifier, cabling, and accessories are sold separately. Installation should be performed by qualified technicians following Cloud’s guidance and best practices for networked audio.
( Specifications )
| Signal-to-Noise Ratio | 100 dB |
| Channels | 2 |
| Adapter Requirement | None |
| aes67 | not specified |
| analog_inputs | 0 |
| analog_outputs | 0 |
| Application | amplifier expansion |
| Audio Format | Digital |
| Audio Processing | Digital |
| audio_format | PCM |
| Bit Depth | 24-bit |
| Bit_Depth | not specified |
| Brand | Cloud |
| Cabling | Cat 5e or better |
