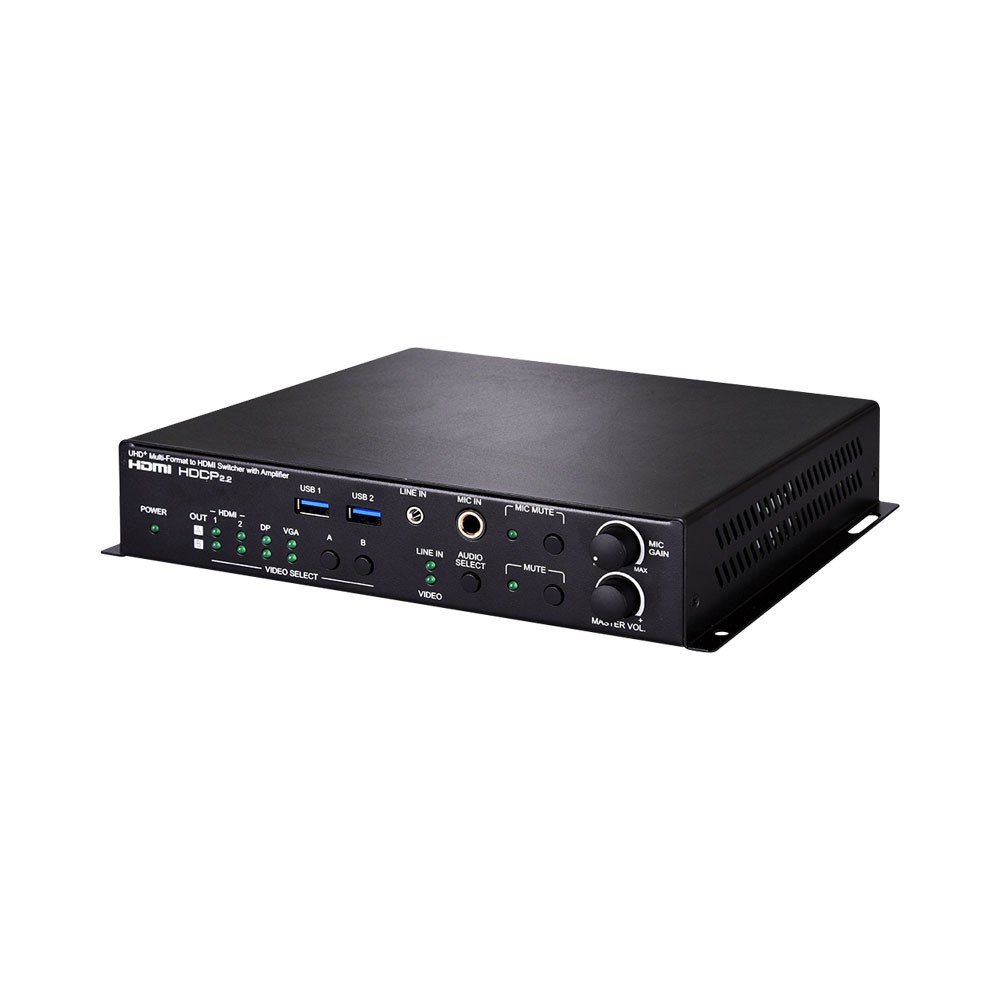

CYP CPLUS-V2030 4KMulti-Format toHDMI

CYP CPLUS-V2030 — 4K multi-format to HDMI switch combined with a high-efficiency 2-channel Class-D amplifier (20W per channel), microphone/line input with 48V phantom power and automatic ducking, audio matrix mixing with volume and mute control, dual matrixed HDMI outputs, and optional extended keypad (trigger) control.

The CPLUS-V2030 consolidates video switching and amplified audio in a single unit for presentation rooms, boardrooms, and small AV installations. Multiple format inputs are switched to dual HDMI outputs simultaneously in a matrixed configuration. The integrated microphone input with 48V phantom power supports condenser microphones; automatic ducking lowers background music or source audio when the microphone is active. The Class-D amplifier delivers 20W per channel for driving passive speakers directly. Audio output matrix mixing allows independent volume and mute control per zone. Extended keypad control (optional accessory) enables single-button and macro trigger actions.

Key features

• 4K multi-format inputs to dual matrixed HDMI outputs
• 2-channel Class-D amplifier — 20W per channel
• Microphone/line input with 48V phantom power
• Automatic microphone ducking
• Audio output matrix mixing with volume and mute
• Audio: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream passthrough
• Extended keypad (trigger) control support (optional)

Specifications

• Model: CPLUS-V2030
• Amplifier: 2-channel Class-D, 20W/channel
• Mic input: Microphone/line, 48V phantom power
• Ducking: Automatic
• Audio formats: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
• HDMI outputs: 2 (matrixed)

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
