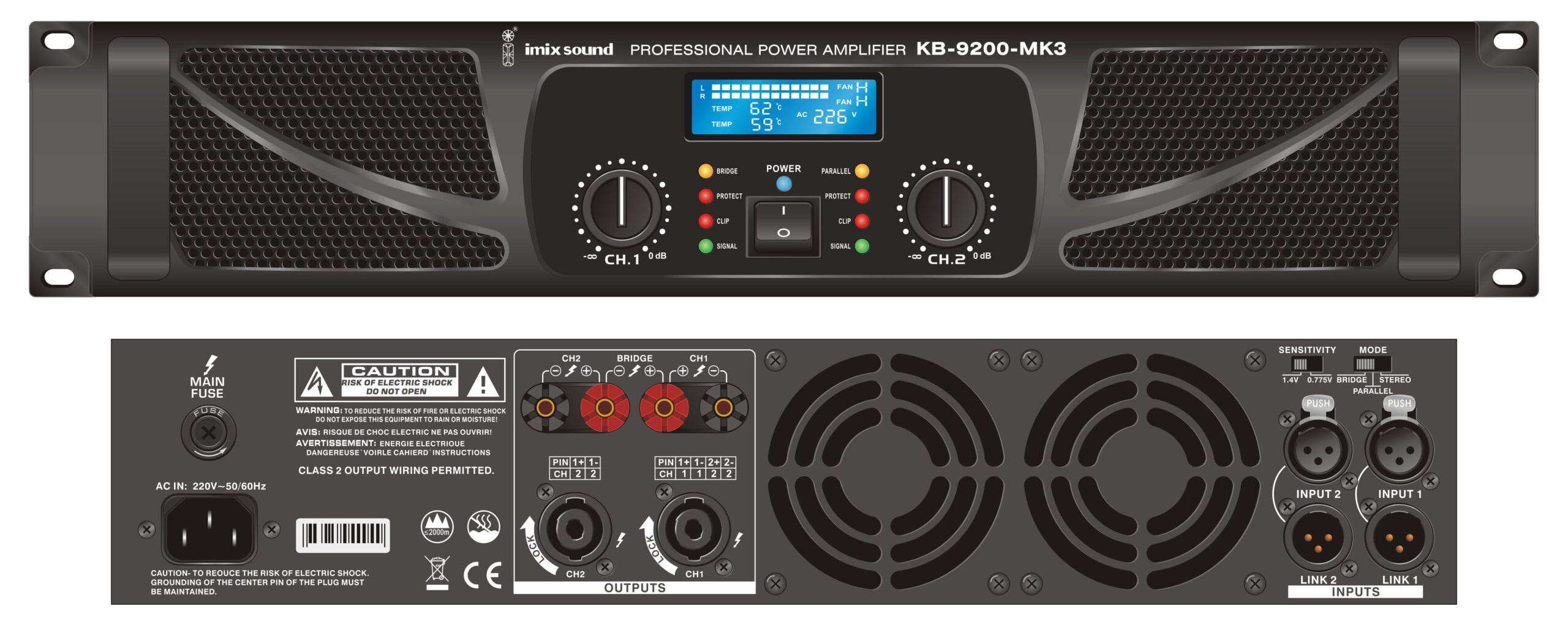

( 01 / 01 )Imix KB-9200-MK3Power Amplifier
Imix - KB-9200-MK3 Power Amplifier - a high-output professional power amplifier rated for demanding PA system applications at concerts, large events, and fixed installations.
The Imix KB-9200-MK3 is the third-generation KB-9200 series power amplifier, delivering high-power amplification for professional PA systems. Balanced XLR and unbalanced RCA inputs allow connection to a wide range of mixing consoles and signal processors. Designed for reliability under sustained load in touring and installation environments. The MK3 revision refines the circuit topology and thermal management from earlier KB-9200 generations. Suited to main PA stacks, sub arrays, and monitor systems at mid-to-large-scale events and fixed venue installations.
High-output amplification for professional PA systems
MK3 third-generation circuit — improved thermal management
Suited to concerts, large events, and fixed venue PA installations
( Specifications )
| Impedance | 4 Ohms |
| Frequency response | 20Hz - 20kHz |
| Input Impedance | 20 kOhms |
| Phase Control | Yes |
| Signal-to-Noise Ratio | 100 dB |
| Amplification Type | Class AB |
| Audio Processing | Analog |
| Auto Shut-Off | Yes |
| Brand | Imix |
| Bridge Mode | Yes |
| Channel Configuration | 2-channel |
| Color | Black |
| Connector Type | XLR and RCA |
| Controller Type | Manual |
