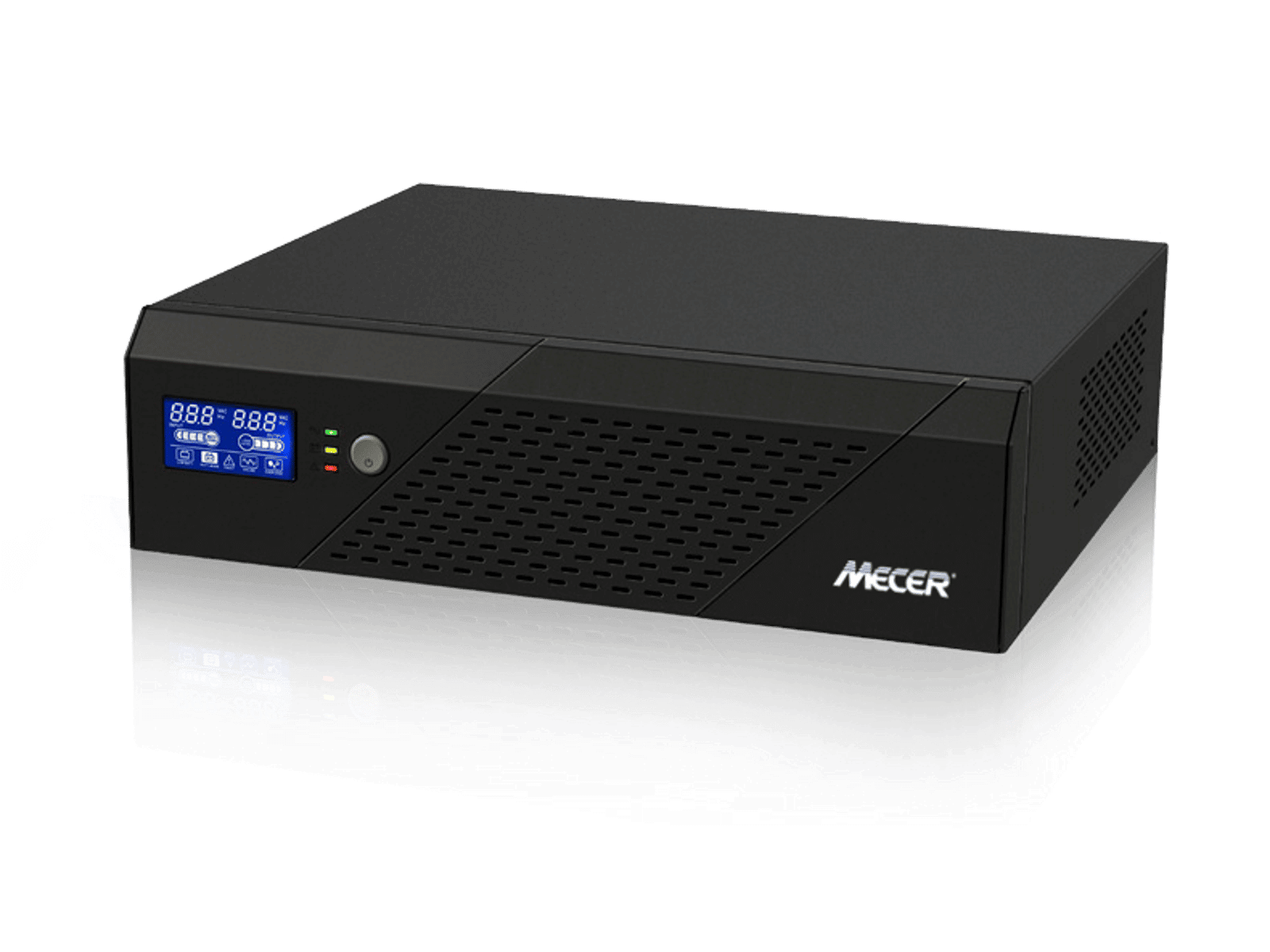

Mecer IVR-2400LBKS2400VA 1440W 24VSimulated

Mecer IVR-2400LBKS 2400VA / 1440W Inverter — off-grid simulated sine wave inverter with AVR voltage regulation, LCD display, and wide 90–280VAC input for load-shedding resilience.

The IVR-2400LBKS is designed as a cost-effective load-shedding solution for basic home appliances — PCs, LED TVs, lights, and Wi-Fi routers. It uses simulated (modified) sine wave output, which is suitable for resistive loads and most electronics but cannot run inductive loads such as kettles, heaters, air conditioners, or any appliance with a motor or heating element. Two 12V lead-acid or AGM deep-cycle batteries wired in series provide the 24V DC input. The built-in AVR (Automatic Voltage Regulation) stabilises output during input voltage fluctuations, and the LCD panel shows battery status, load, and fault conditions at a glance.

Key features

• 2400VA / 1440W capacity for essential home appliances
• Built-in AVR — stabilises output during voltage fluctuations
• Wide input range: 90–280VAC accommodates unstable grid power
• LCD display for real-time battery, load, and fault monitoring
• Selectable charge current: 10A or 20A
• Full protection: overload, short circuit, polarity reverse
• Auto-restart on AC recovery
• Intelligent thermal fan control
• Note: Simulated sine wave — not suitable for kettles, heaters, or motor-driven appliances

Specifications

• Model / Part: IVR-2400LBKS
• Capacity: 2400VA / 1440W
• Power factor: 0.6
• Output waveform: Simulated (modified) sine wave
• Battery voltage: 24VDC (2× 12V in series)
• Battery type: Lead-acid or Deep Cycle AGM
• AC input range: 90–280VAC
• DC start voltage: >22VDC
• Charge voltage (float): 27.4VDC ±2%
• Low battery alarm: 20.4VDC ±2%
• Shutdown voltage: 19.8VDC ±2%
• Max charge current: 10A or 20A (selectable)
• Efficiency (peak): 85%
• Dimensions: 300 × 360 × 88mm
• Net weight: 4.8kg
• Warranty: 1 year limited
