( 01 / 01 )Lithe Audio IO1Indoor & OutdoorWiFi
Experience versatile, high-quality sound indoors or outdoors with the Lithe Audio IO1 WiFi speaker pair. Designed for flexible placement and effortless installation, these active surface mount speakers deliver powerful audio with multiple connectivity options.
Key Features
- Active indoor/outdoor surface-mount pair: one Wi-Fi master and one passive speaker, 100 W RMS (2 × 50 W) Class D
- Six mounting orientations (on wall, in corner, on corner, counter top, pendant, ground spike). Pendant eyelet kit and garden spike are sold separately
- Built-in Wi-Fi (2.4 GHz / 5 GHz, 802.11a/b/g/n/ac), 10/100 Ethernet in/out, Bluetooth 5.0, Apple AirPlay 2, Google Chromecast and Spotify Connect
- Optical line-in (auto-detecting) and a passive speaker output
- Fully adjustable EQ via the Lithe app
- Matt black or white; aluminium UV-coated grille; ABS+PC housing
Indoor and outdoor placement
The IO1 is an all-in-one active speaker: amplifier and streaming are built in, so the system only needs mains power. The pair kit adds a matching passive speaker on the master's speaker output. Lithe Audio specifies weather-resistant construction for indoor or outdoor use; garden spike and pendant kits are optional accessories.
Streaming and control
Stream from a phone or tablet over Wi-Fi with AirPlay 2, Google Chromecast or Spotify Connect, or use Bluetooth 5.0. Multiple IO1 units and Lithe Audio ceiling speakers can be grouped for multi-room playback. Wired Ethernet (in/out) is provided for a hardwired link. The product page also lists Amazon Alexa via Bluetooth and Works with OK Google.
Specifications
Figures below are from the Lithe Audio IO1 Indoor and Outdoor Speakers 2022 spec sheet (revision 1.1), with the official Lithe Audio product page used only to corroborate the same values. This listing is the Wi-Fi pair (SKU 06810 black / 06811 white): one active master plus one passive speaker.
Audio
Source: Lithe Audio IO1 Indoor and Outdoor Speakers 2022 Spec Sheet 1.1, Audio Spec block. Impedance wording corroborated by the Lithe Audio product page (the PDF extract of "4 Ohms nominal (8 8)" is treated as garbled; both sources state 4 ohms nominal).
| Amplifier | Class D (digital) |
|---|---|
| RMS power | 100 W RMS (2 × 50 W) |
| Frequency response (−3 dB) | 60 Hz - 20 kHz |
| Frequency range (−10 dB) | 38 Hz - 20 kHz |
| Impedance | 4 ohms nominal |
| THD+N | < 0.01 % |
| Sensitivity (1 W / 1 m) | 82 dB |
| Coverage (1-4 kHz) | Vertical 100° / horizontal 170° |
| Audio compression | 192 kHz / 24-bit |
Connectivity
Source: Lithe Audio IO1 2022 Spec Sheet 1.1, Connectivity block. Amazon Alexa via Bluetooth is from the official product page only (not on the spec sheet).
| Wi-Fi | Wi-Fi certified 2.4 GHz / 5 GHz (802.11a/b/g/n/ac) |
|---|---|
| Ethernet | 10/100 ports (in/out) for a hardwired connection |
| Apple AirPlay 2 | Yes |
| Google Chromecast | Yes |
| Spotify Connect | Yes |
| Bluetooth | Bluetooth 5.0 |
| Voice | Works with OK Google (spec sheet); Amazon Alexa via Bluetooth (product page) |
| Line in | Optical, auto-detecting |
| Speaker output | Passive speaker output (one passive IO1 per master) |
Drive units, housing and environment
Source: Lithe Audio IO1 2022 Spec Sheet 1.1, Speaker Spec and Features blocks. IP rating: the spec sheet prints IPX6; the official product page lists IP66. Both are shown rather than merged.
| Woofer | 2 × 3" waterproof coated paper cone |
|---|---|
| Tweeter | 0.75" waterproof coated silk dome |
| Housing | ABS+PC (UL f1/f2; UL746C-V0) |
| Grille | Aluminium (UV powder coating) |
| Colour | Matt black or white |
| IP rating (spec sheet 1.1) | IPX6 |
| IP rating (product page) | IP66 |
| Operating temperature | −10 °C to 50 °C |
| Storage temperature | −20 °C to 60 °C |
Power, dimensions and weight
Source: Lithe Audio IO1 2022 Spec Sheet 1.1, Speaker Spec block and dimensions drawing. Power-supply size and 6 m cable: official product page.
| Power input supply (PSU) | 100-240 V, 50/60 Hz / 2.5 A |
|---|---|
| DC inlet (speaker drawing) | 24 V / 5.25 A |
| Mains | Connect to a plug socket, outdoor socket or existing light circuit; 230 V or 110 V supply |
| Speaker dimensions (H × W × D) | 465 × 170 × 100 mm (18.3 × 6.7 × 3.9 in) |
| Depth to back of bracket | 124 mm (4.9 in) |
| Bracket (drawing) | 162 mm / 277 mm tall; 90 mm wide; ∅ 5 mm fixing holes |
| Net weight (single) | 3.7 kg (8.1 lb) |
| Shipping weight (pair) | 9.5 kg (20.94 lb) |
| Power supply (product page) | 30 × 73 × 170 mm (H × W × L); total cable length 6 m |
What's in the box (pair kit)
Source: Lithe Audio IO1 2022 Spec Sheet 1.1, What's in the box / SKU Codes, corroborated by the official product page pair-kit list. Live SKU is the black Wi-Fi pair (06810).
| Active speaker | IO1 surface-mount speaker (Wi-Fi master) |
|---|---|
| Passive speaker | IO1 surface-mount speaker (passive) |
| Power supply | Yes |
| Mounting brackets | Yes (x2 on the pair kit) |
| Speaker cable | 16 AWG tin-coated copper cable (pair only); product page lists 7 m |
| Documentation | Instruction manual |
| Pair SKUs | 06810 Wi-Fi pair black; 06811 Wi-Fi pair white |
| Single SKUs (not this listing) | 06800 black / 06801 white (Wi-Fi single); 06820/06821 black and 06830/06831 white passive |

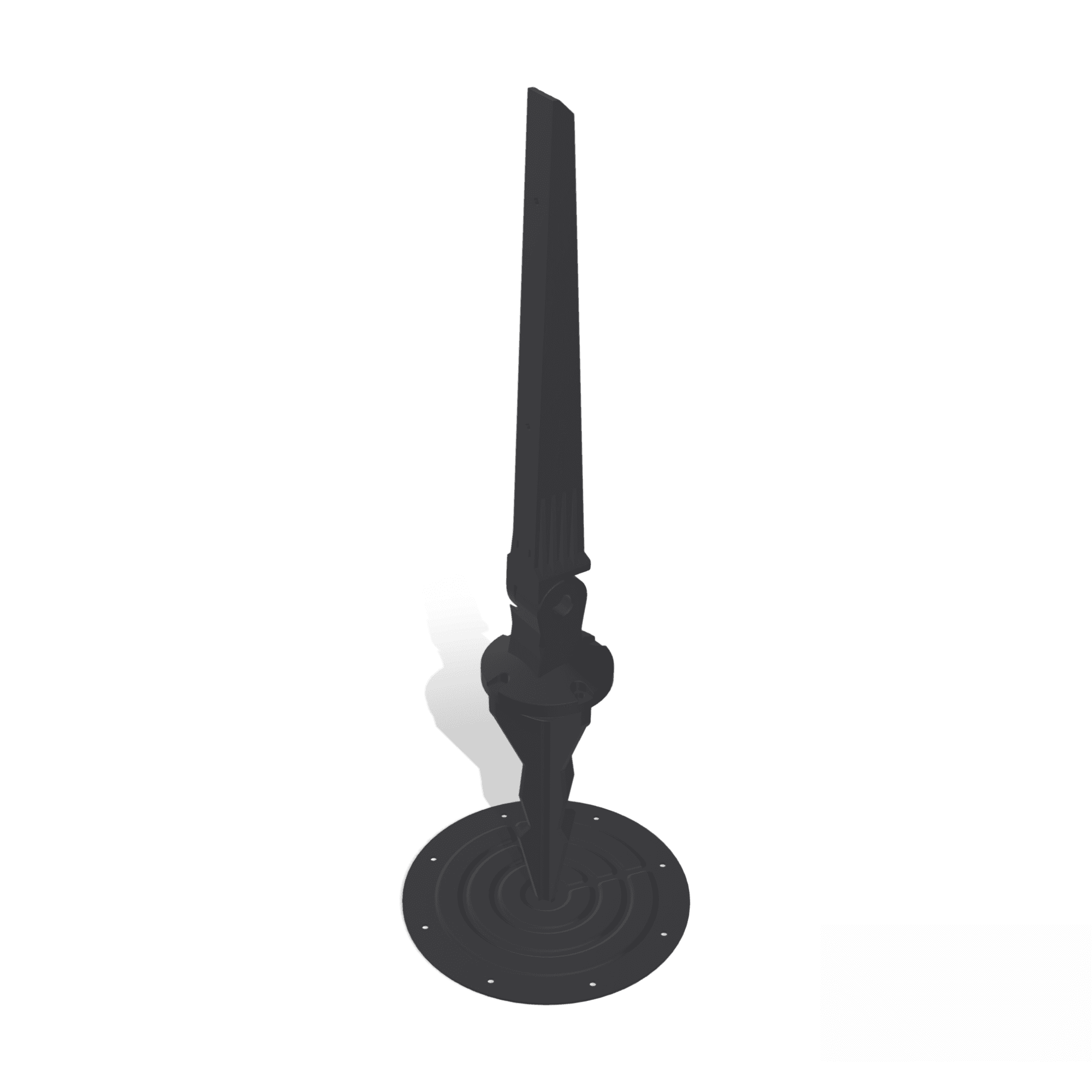

| Sold separately | 06840/06841 garden spike; 06852 eyelet kit; 06851 5 m power extension; 06850 16 AWG speaker cable 7 m |
Datasheets
Public manufacturer documents (link only - this does not add a downloads module):
